COCO

完成車価格 ¥89,000(税抜)
  • KONA 6061 ALUMINUM
  • INTERNAL HEADSET
  • 650b WHEELS

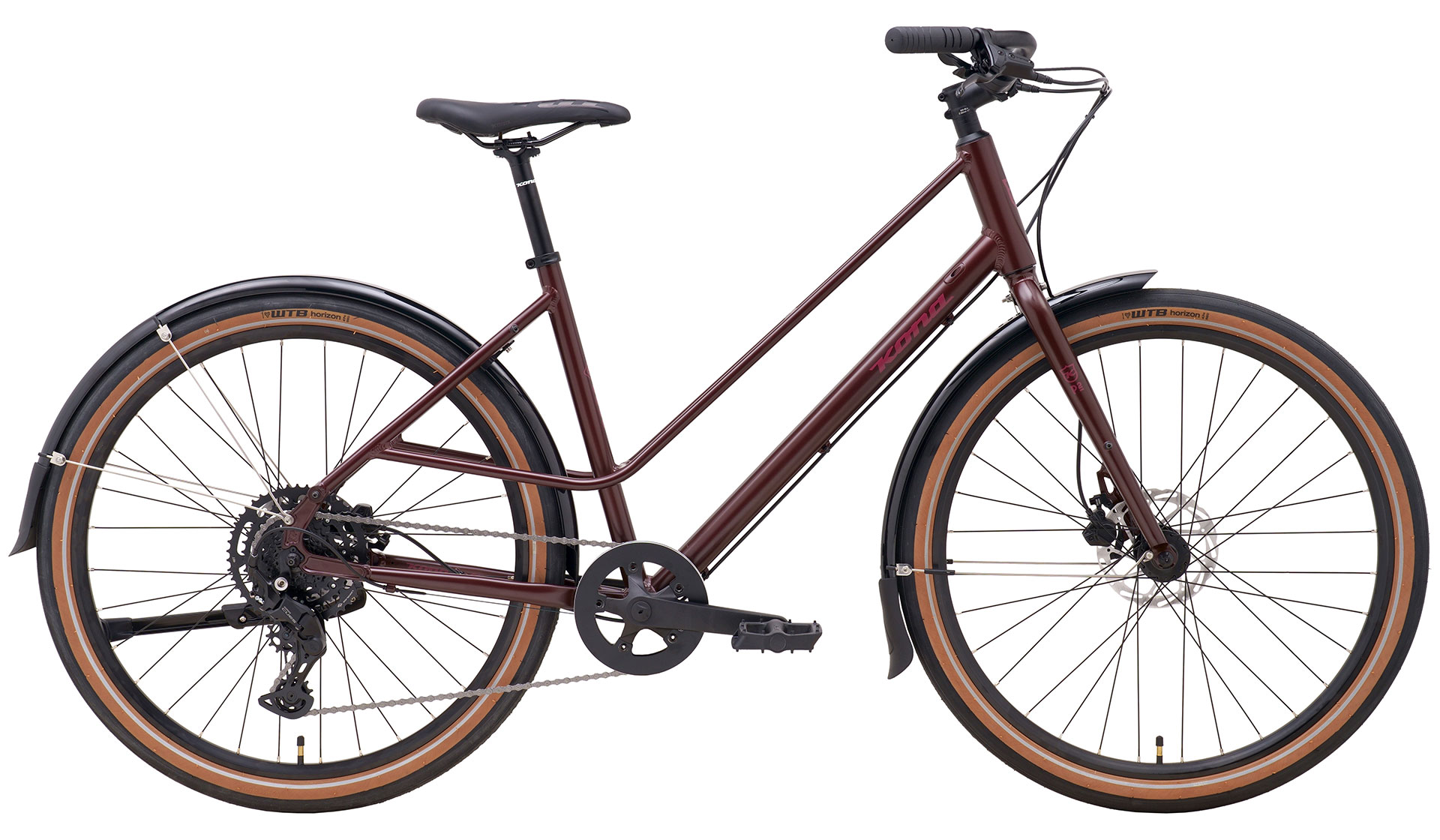

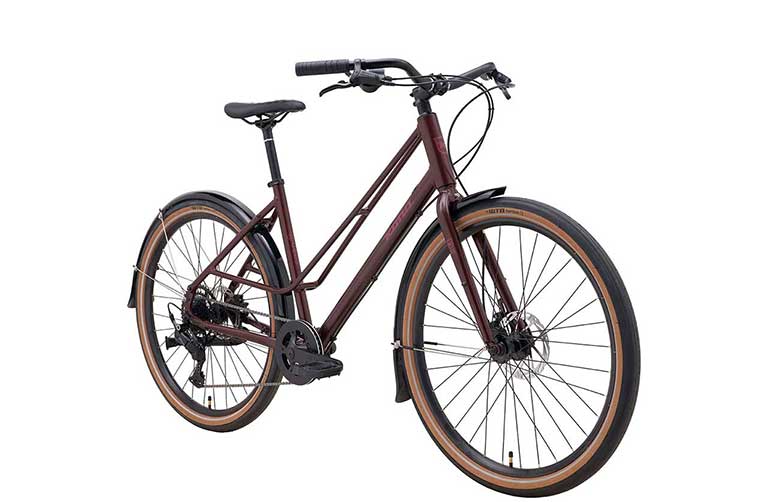

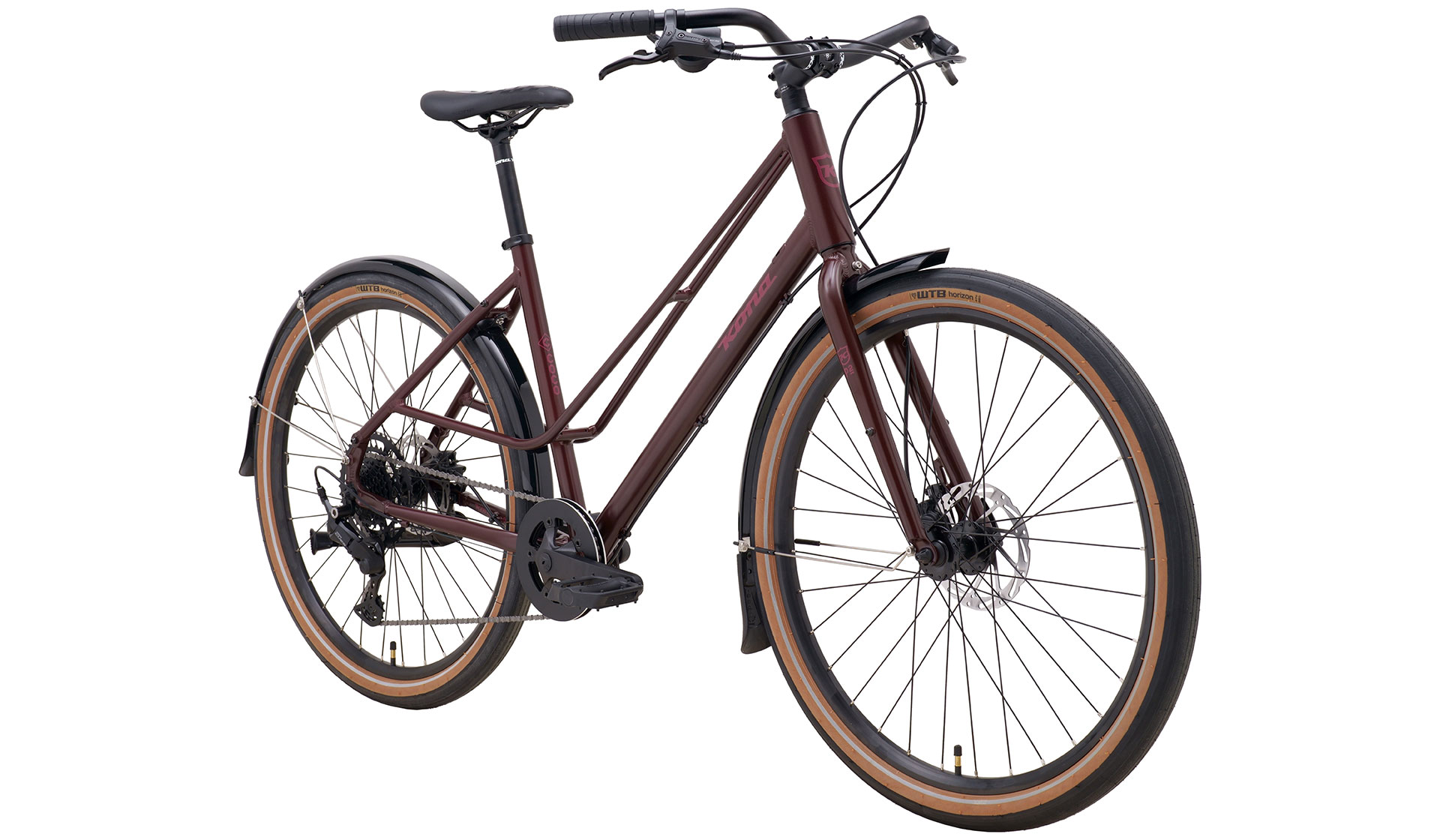

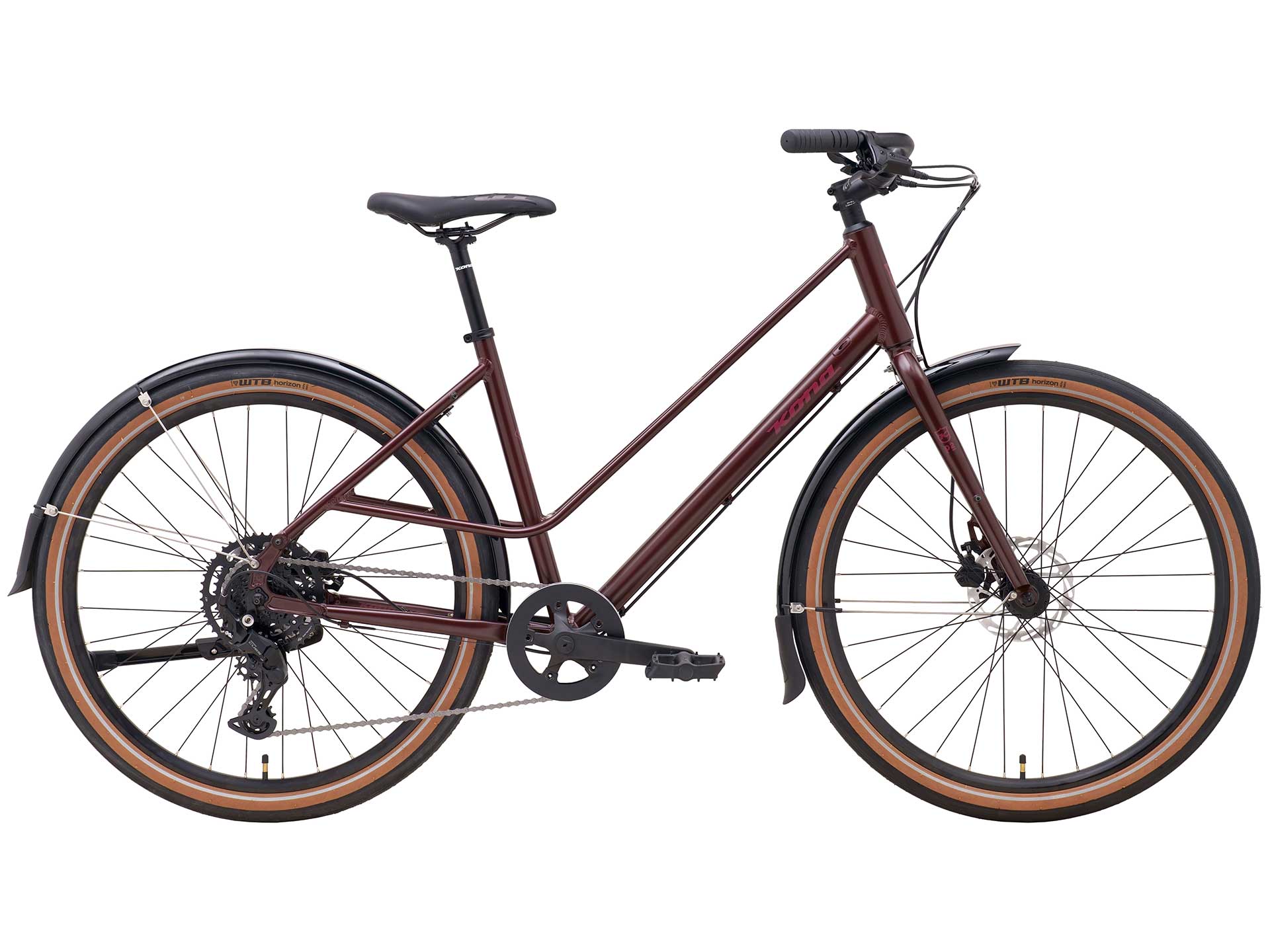

COCO

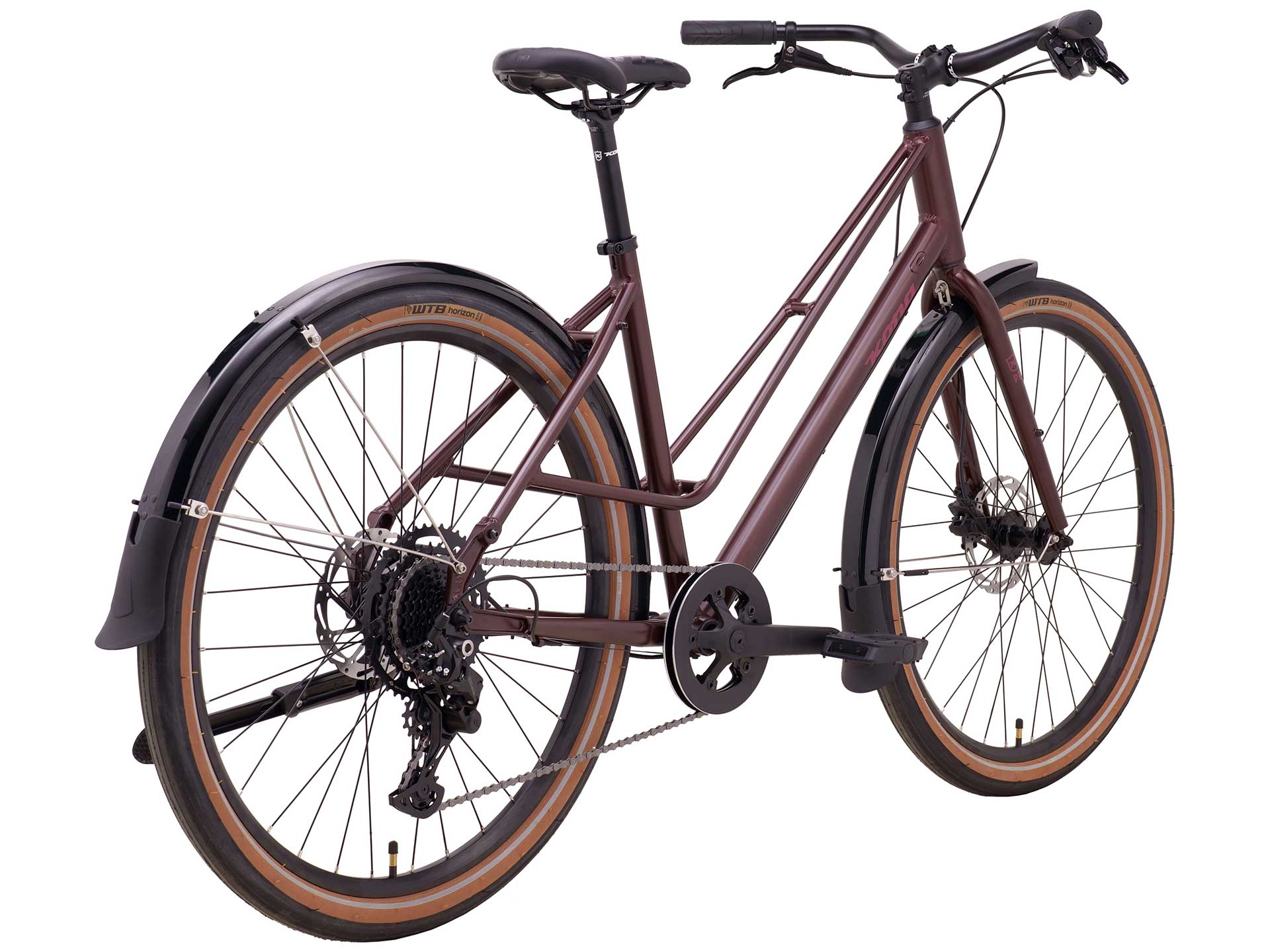

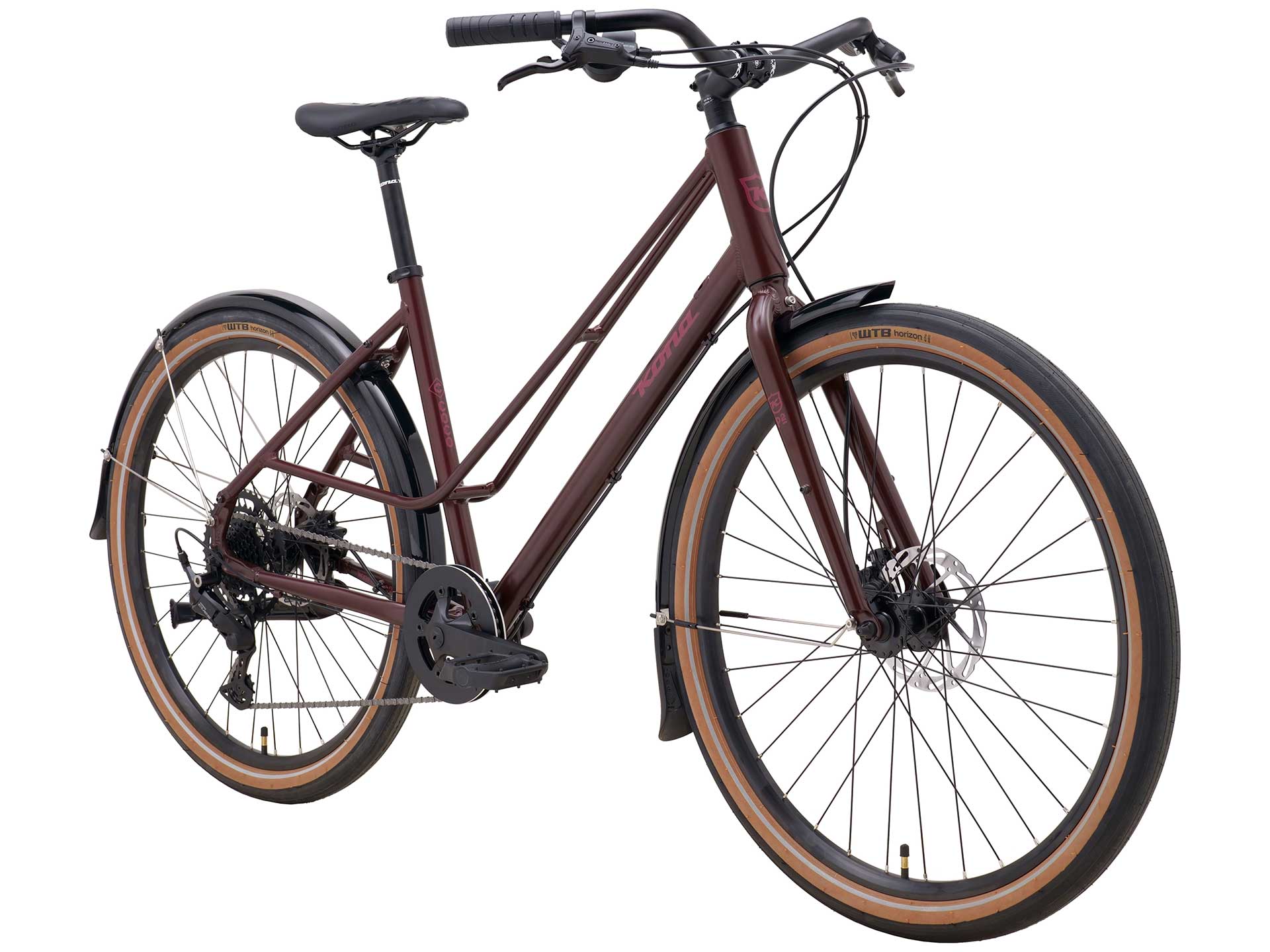

Close your eyes and picture the sunshine dripping from a Copenhagen sky. Everywhere you look are stylish cyclists aboard stylish bikes. The Coco is our answer to the European cycling craze. A gorgeous step-through design allows for riding ease in any attire. Fenders keep you dry on the rainiest of days, and hydraulic disc brakes ensure you stop without any hesitation.

COCO IMG COCO IMG COCO IMG COCO IMG COCO IMG COCO IMG COCO IMG COCO IMG COCO IMG COCO IMG COCO IMG

SPECIFICATIONS

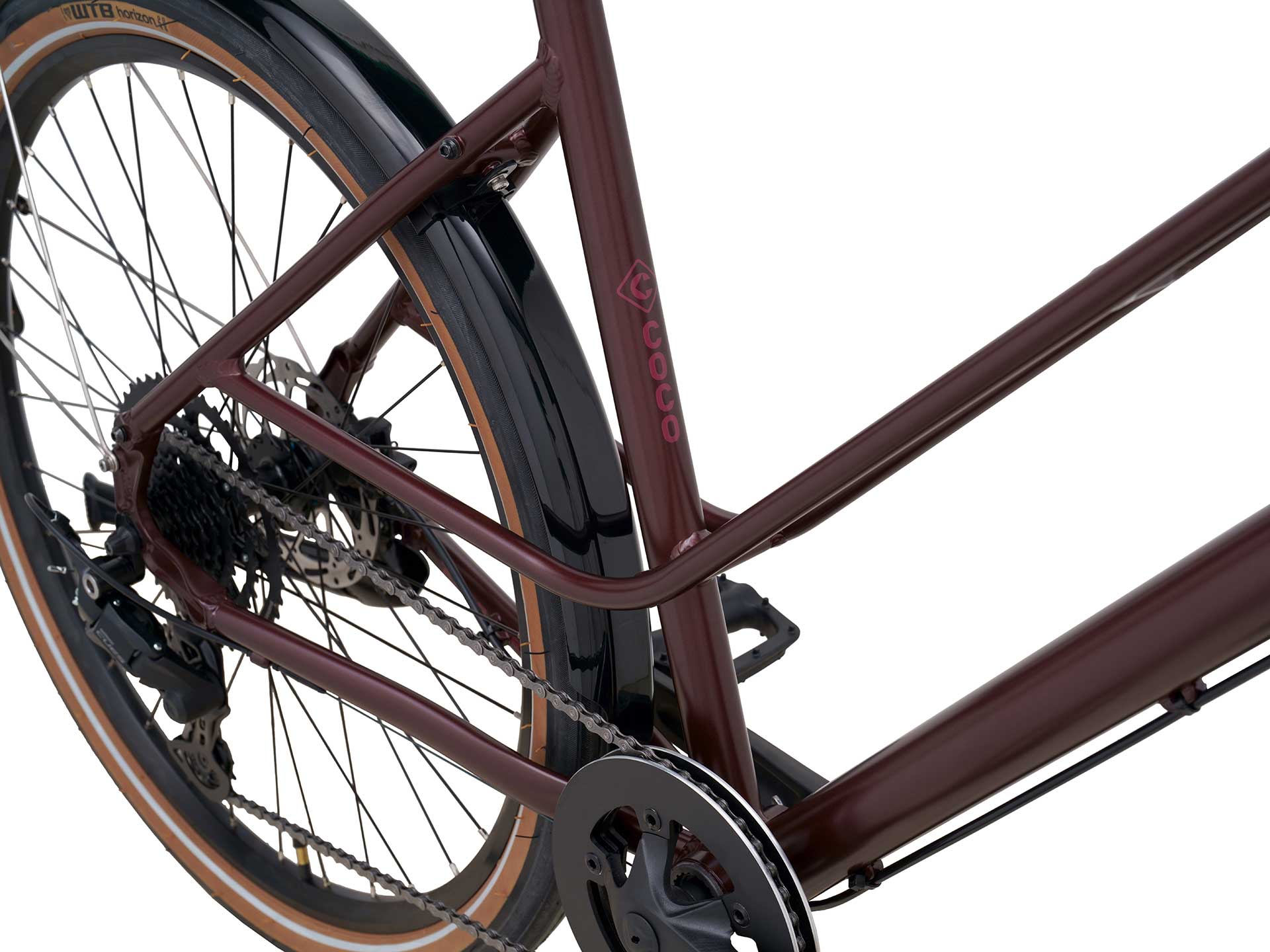

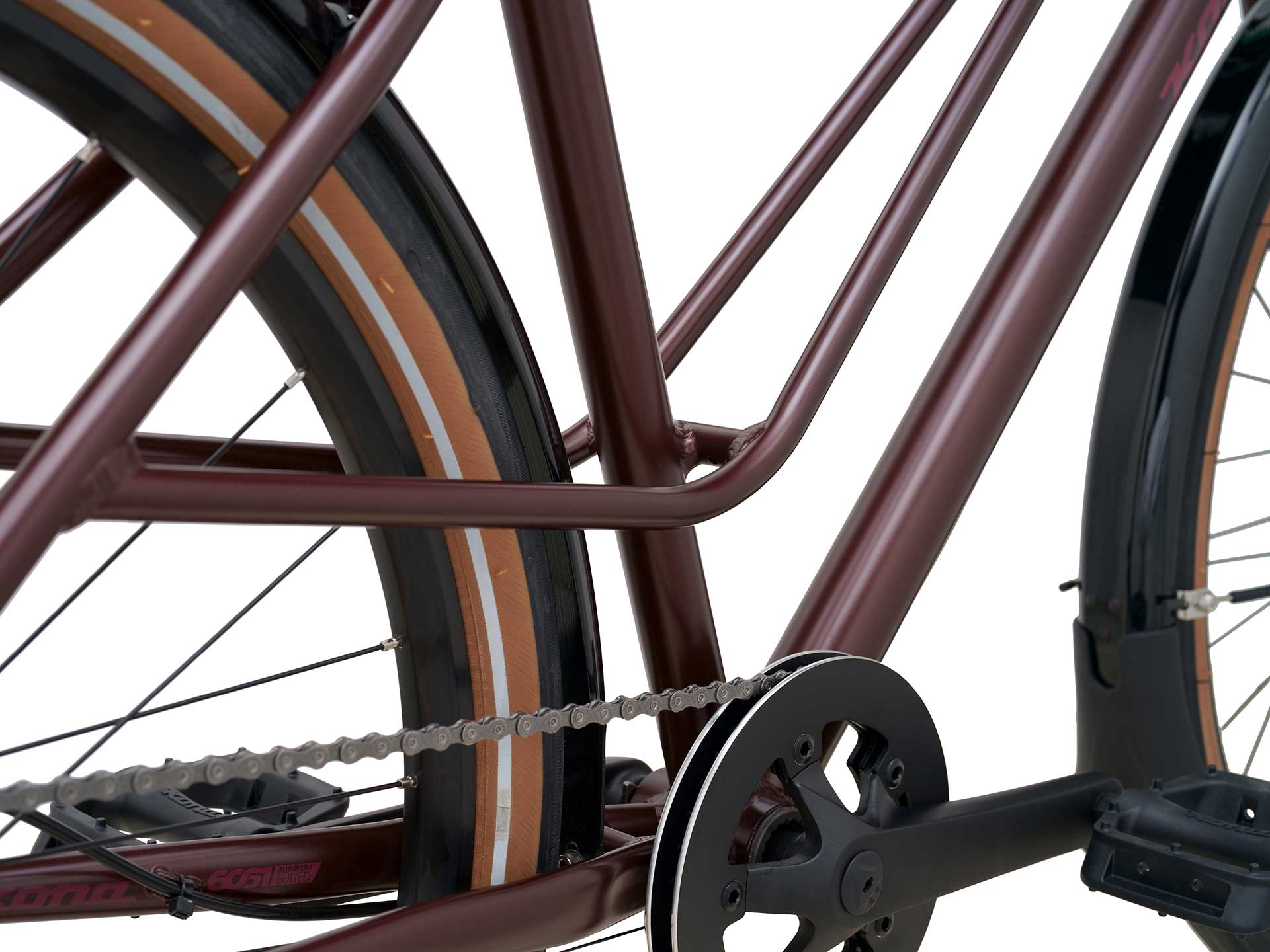

FRAME MATERIAL Kona 6061 Aluminum Butted
SIZES S, M
REAR SHOCK n/a
FORK Kona Project Two Aluminum Disc

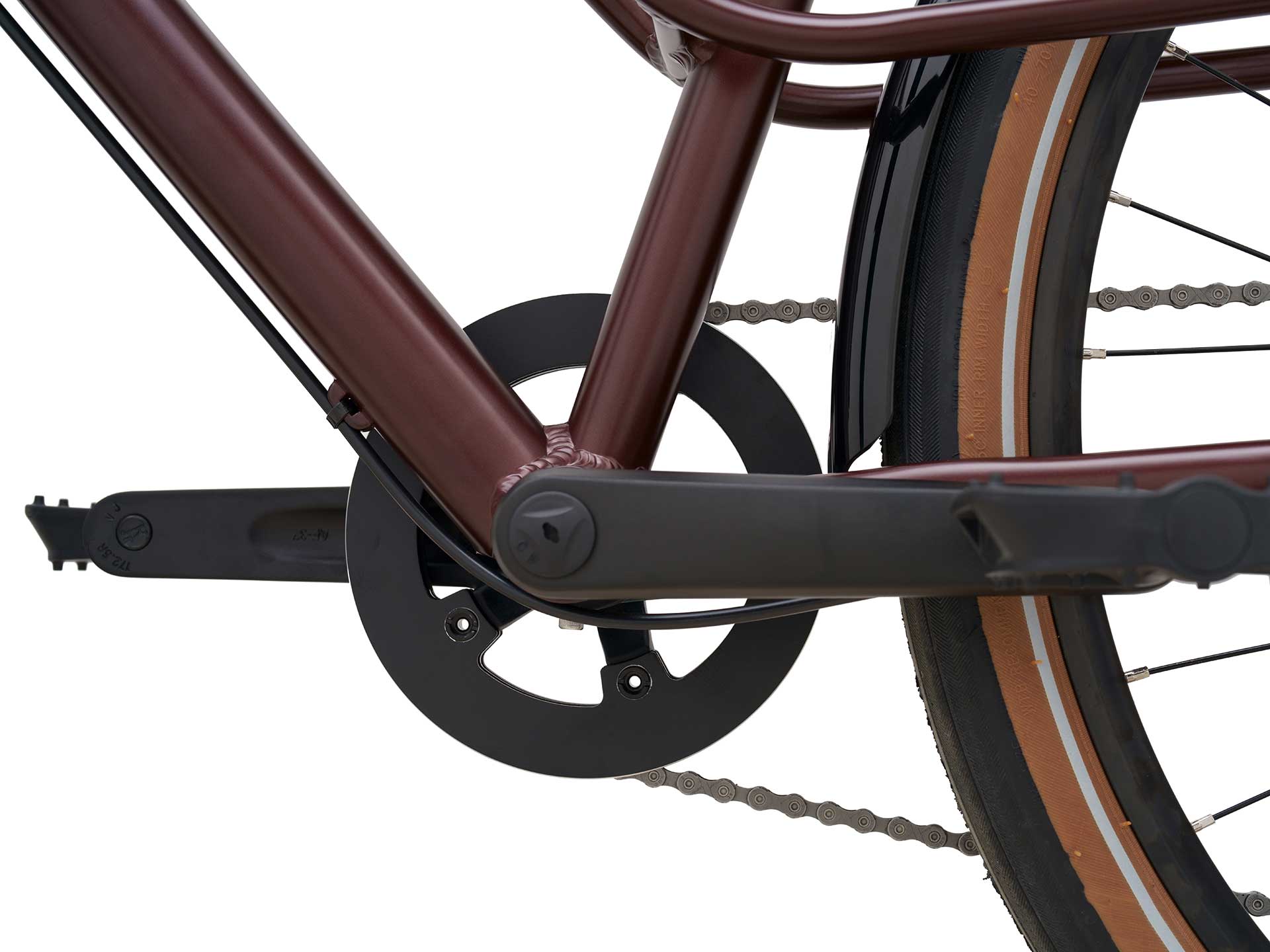

CRANKARMS FSA Tempo City
CHAINRINGS 39t/Guard
B/B TH 7420ST 68mm
PEDALS Kona JS2
CHAIN KMC X9
FREEWHEEL Shimano HG200 11-32t 9spd
CHAINGUIDE n/a
F/D n/a
R/D Shimano Alivio
SHIFTERS Shimano Acera
BRAKE CALIPERS Tektro HDM275
FRONT BRAKE ROTOR Tektro TR160 160mm
REAR BRAKE ROTOR Tektro TR160 160mm
BRAKE LEVERS Tektro HDM275
HEADSET FSA No.10P
HANDLEBAR Kona Handplant
STEM Kona Commuter
SEATPOST Kona Thumb w/Offset 27.2mm
SEAT CLAMP Kona Clamp
GRIPS Velo Ergo
SADDLE Kona Commuter
FRONT HUB Formula 100x9mm
REAR HUB Formula 135x10mm
SPOKES Stainless Black 15g fr / 14g rr
RIMS Alex DP23
FRONT TIRE WTB Horizon Comp 650x47c
REAR TIRE WTB Horizon Comp 650x47c

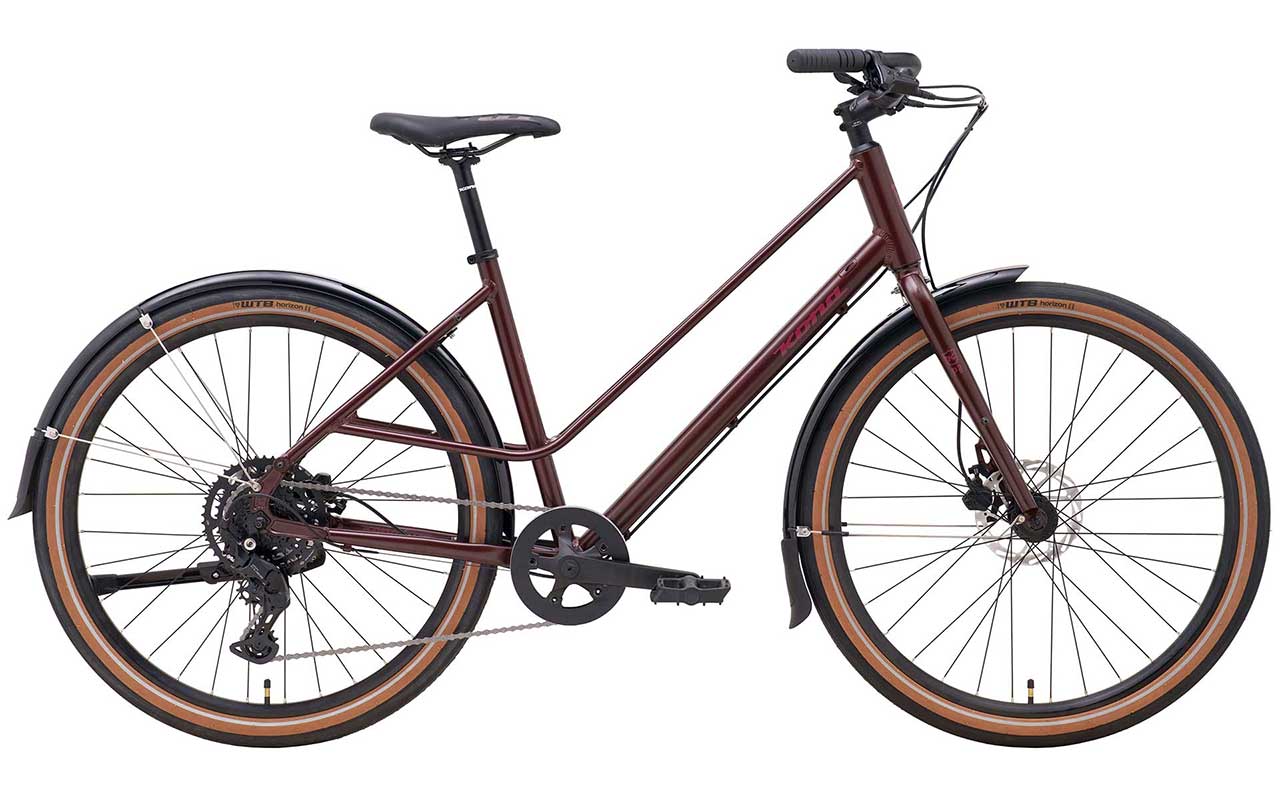

PAINT COLOR Matt Deep Red
EXTRAS Fenders

GEOMETRY

  SIZE S M
1 ST LENGTH 420 470
2 TT LENGTH 520 550
3 REACH 361 388
4 STACK 555 566
5 STANDOVER 547 547
6 HT ANGLE 70.5° 70.5°
7 HT LENGTH 115 130
8 ST ANGLE 74° 74°
9 CS LENGTH 440 440
10 BB DROP 72 69
11 BB HEIGHT 270 273
12 WHEELBASE 1019 1051
13 FRONT CENTER 589 621
14 FORK LENGTH 411 411
15 FORK OFFSET 50 50
ジオメトリ表
  1. 1ST LENGTH
  2. 2TT LENGTH
  3. 3REACH
  4. 4STACK
  5. 5STANDOVER
  6. 6HT ANGLE
  7. 7HT LENGTH
  8. 8ST ANGLE
  9. 9CS LENGTH
  10. 10BB DROP
  11. 11BB HEIGHT
  12. 12WHEELBASE
  13. 13FRONT CENTER
  14. 14FORK LENGTH
  15. 15FORK OFFSET

SIZING & FIT

MOUNTAIN / FAT BIKE
身 長 股 下 長 MTB / XC TRAIL / FAT ALL MOUNTAIN / ENDURO GRAVITY / DH
147-155CM 61-69CM XS XS -
152-160CM 66-74CM S S -
157-170CM 69-76CM S,M S,M M
168-178CM 74-79CM M M M
175-183CM 76-84CM M,L M,L M,L
180-188CM 81-89CM L,XL L,XL L,XL
185-196CM 84-91CM XL XL L,XL
ROAD / ADVENTURE / CITY
身 長 股 下 長 ROAD / ROVE SUTRA DEWS COCO
147-155CM 61-69CM 46 CM 46-48 CM 46-48 CM S
152-160CM 66-74CM 49 CM 48-49.5 CM 46-49 CM S,M
157-170CM 69-76CM 49-53 CM 49-53 CM 48-54 CM M,L
168-178CM 74-79CM 53-56 CM 51-56 CM 52-56 CM M,L
175-183CM 76-84CM 54-59 CM 54-59 CM 54-59 CM L,XL
180-188CM 81-89CM 59-61 CM 58-61 CM 54-59 CM L,XL
185-196CM 84-91CM 59-61 CM 58-61 CM 54-59 CM XL
