WO

完成車価格 ¥145,000(税抜)★
  • KONA 6061 ALUMINUM
  • INTERNAL HEADSET
  • TAPERED HEAD TUBE
  • FAT BIKE
WO

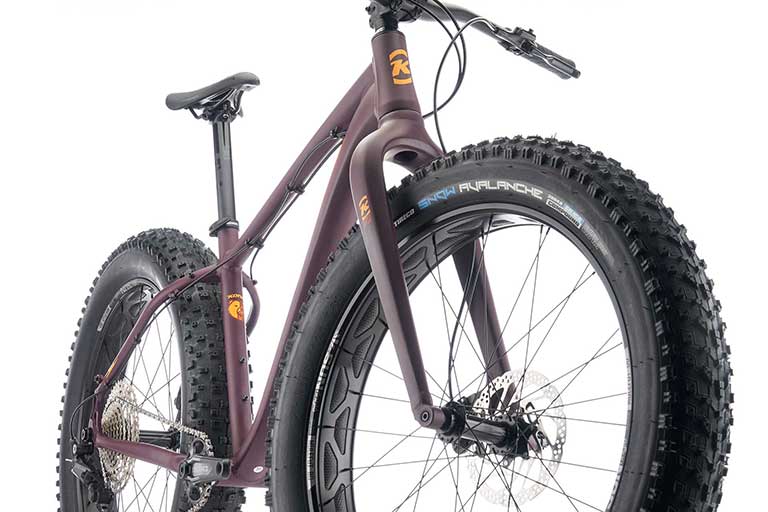

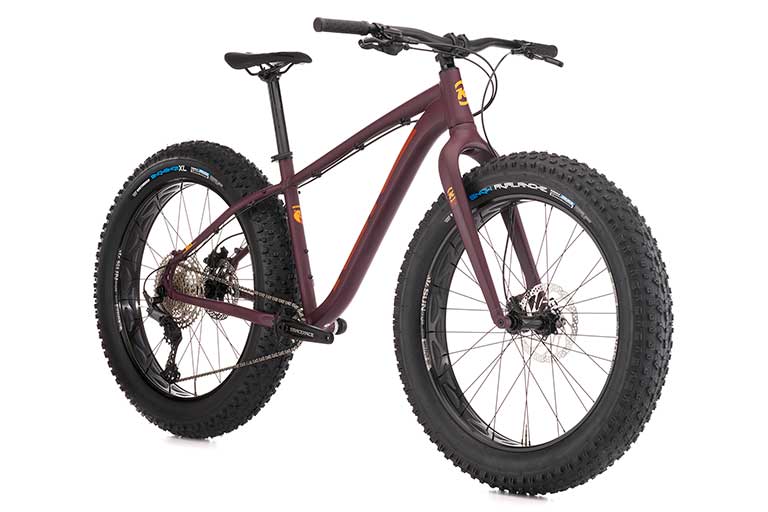

The Fat Bike revolution is alive and well, and the Wo lives on to take you to previously untouched terrain. Whether rallying across a Baja beach, or chugging along Wisconsin groomed snow trails, the Wo is ready to push through challenging terrain with its 4.8” Schwalbe Jumbo Jim tires and Shimano Deore 10 speed drivetrain.

WO IMG WO IMG WO IMG WO IMG WO IMG WO IMG WO IMG WO IMG WO IMG

SPECIFICATIONS

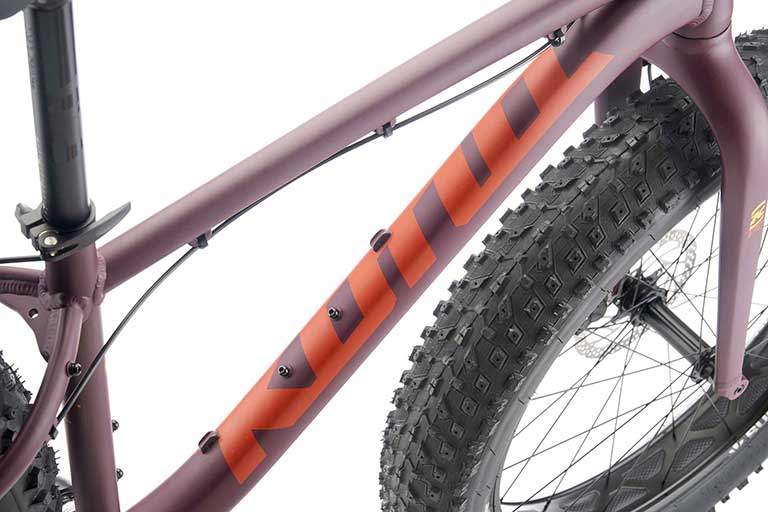

FRAME MATERIAL Kona Fat 6061 Aluminum Butted
SIZES S, M, L
REAR SHOCK n/a
FORK Kona Wo Fat Disc

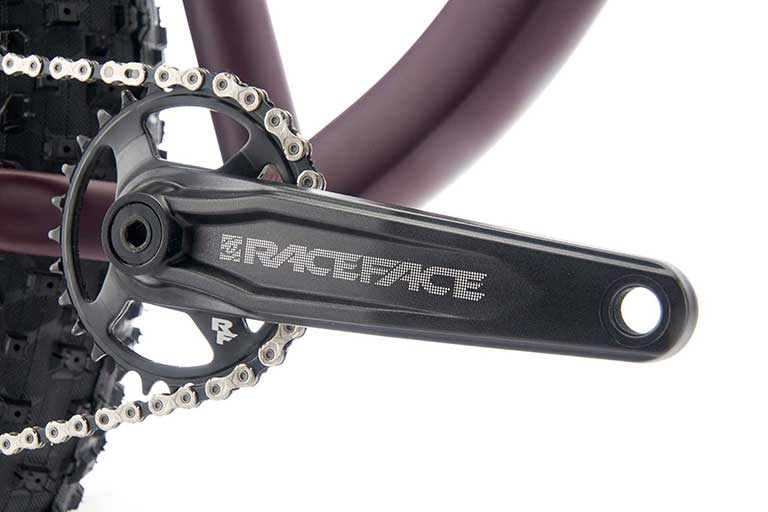

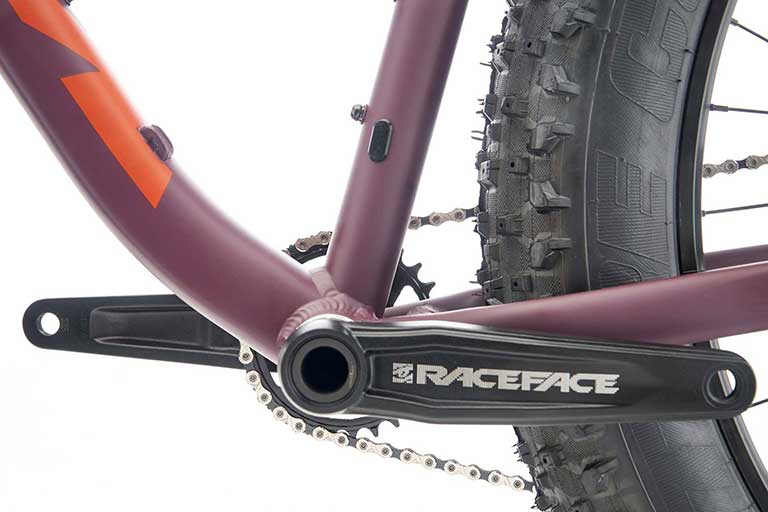

CRANKARMS RaceFace Ride
CHAINRINGS 28t Narrow/Wide
B/B RaceFace 100mm
PEDALS n/a
CHAIN KMC X10
FREEWHEEL Shimano Deore 11-42t 10spd
CHAINGUIDE n/a
F/D n/a

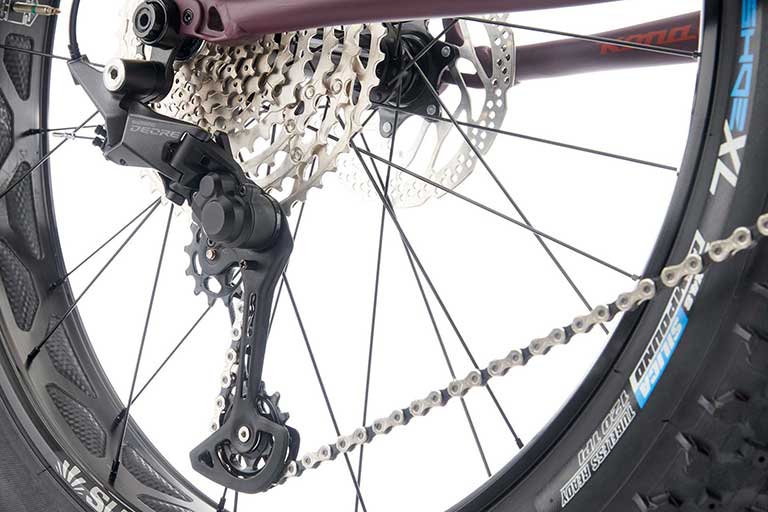

R/D Shimano Deore

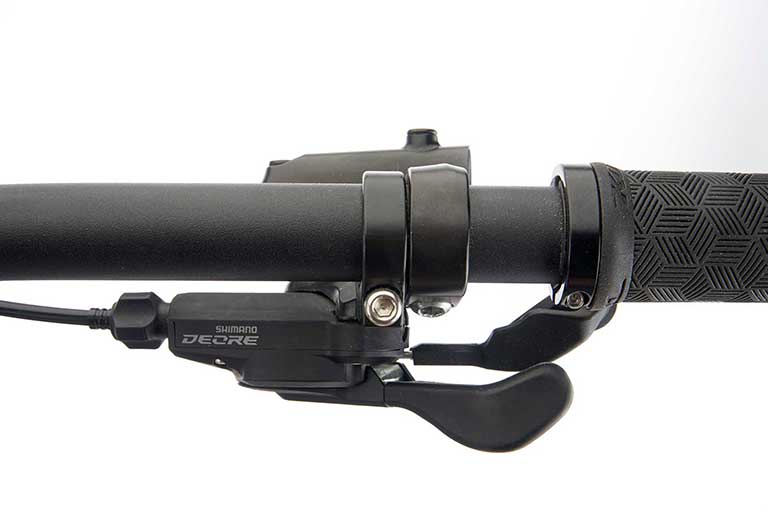

SHIFTERS Shimano Deore

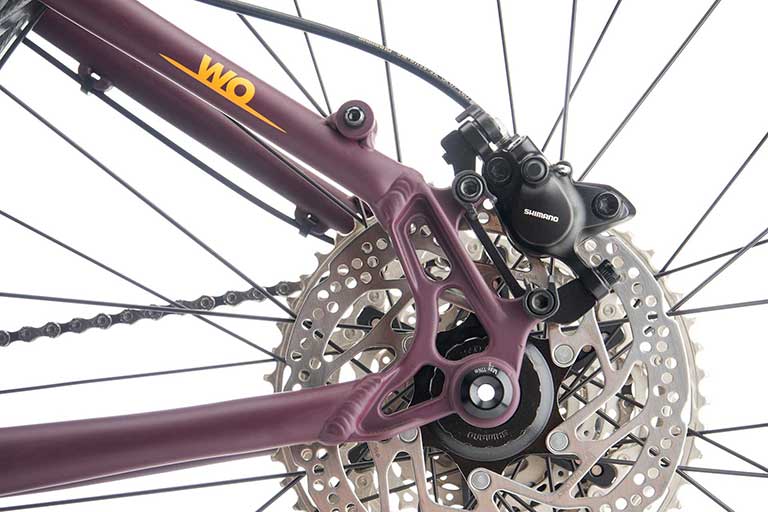

BRAKE CALIPERS Shimano Hydraulic
FRONT BRAKE ROTOR Shimano RT56 180mm
REAR BRAKE ROTOR Shimano RT56 160mm

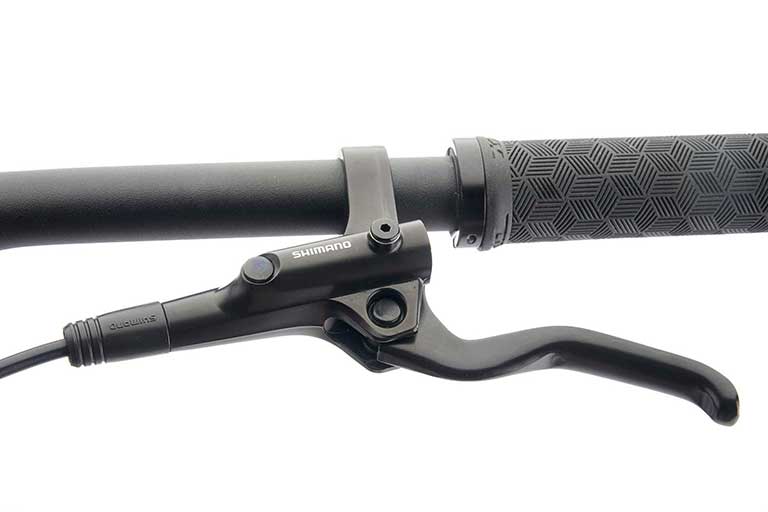

BRAKE LEVERS Shimano Hydraulic

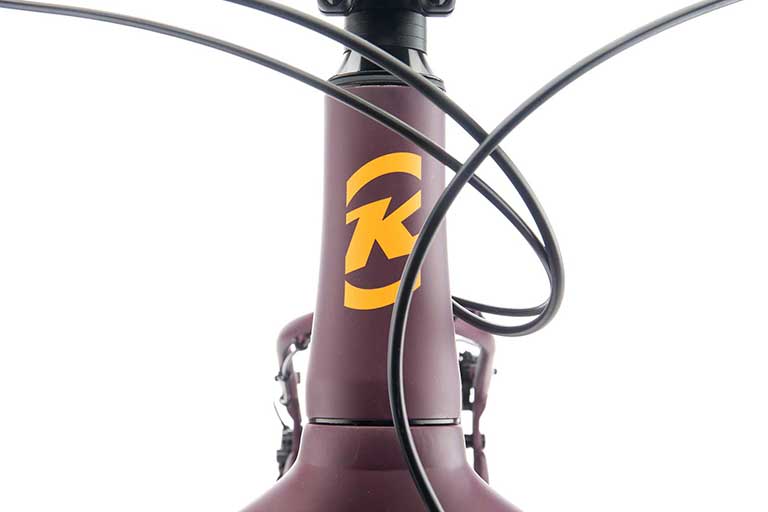

HEADSET FSA No.57B

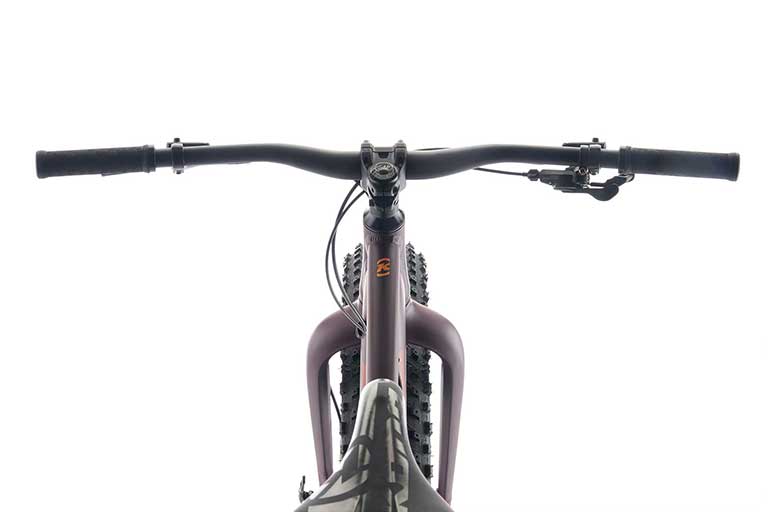

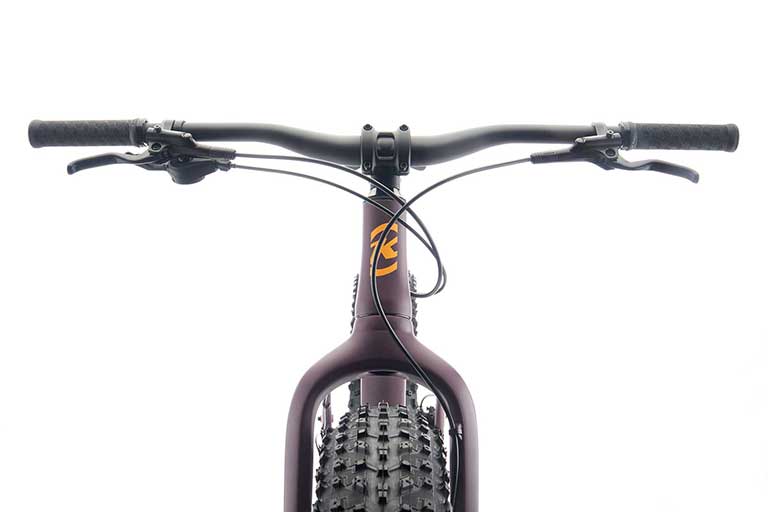

HANDLEBAR Kona XC/BC 35
STEM Kona XC/BC 35
SEATPOST Kona XC/BC 31.6mm
SEAT CLAMP Kona QR
GRIPS Kona Key Grip
SADDLE Kona Fat
FRONT HUB KT 150x15mm
REAR HUB KT 197x12mm
SPOKES Stainless Black 14g
RIMS Shinning Tubeless Ready
FRONT TIRE Schwalbe Jumbo Jim EVO Liteskin 26x4.8"
REAR TIRE Schwalbe Jumbo Jim EVO Liteskin 26x4.8"
PAINT COLOR Gloss Slate Blue

GEOMETRY

  SIZE S M L
1 ST LENGTH 381 432 483
2 TT LENGTH 591 619 647
3 REACH 405 430 455
4 STACK 608 617 627
5 STANDOVER 735 764 788
6 HT ANGLE 69° 69° 69°
7 HT LENGTH 120 130 140
8 ST ANGLE 73° 73° 73°
9 CS LENGTH 455 455 455
10 BB DROP 60 60 60
11 BB HEIGHT 320 320 320
12 WHEELBASE 1125 1154 1182
13 FRONT CENTER 677 705 694
14 FORK LENGTH 485 485 485
15 FORK OFFSET 55 55 55
ジオメトリ表
  1. 1ST LENGTH
  2. 2TT LENGTH
  3. 3REACH
  4. 4STACK
  5. 5STANDOVER
  6. 6HT ANGLE
  7. 7HT LENGTH
  8. 8ST ANGLE
  9. 9CS LENGTH
  10. 10BB DROP
  11. 11BB HEIGHT
  12. 12WHEELBASE
  13. 13FRONT CENTER
  14. 14FORK LENGTH
  15. 15FORK OFFSET

SIZING & FIT

MOUNTAIN / FAT BIKE
身 長 股 下 長 MTB / XC TRAIL / FAT ALL MOUNTAIN / ENDURO GRAVITY / DH
147-155CM 61-69CM XS XS -
152-160CM 66-74CM S S -
157-170CM 69-76CM S,M S,M M
168-178CM 74-79CM M M M
175-183CM 76-84CM M,L M,L M,L
180-188CM 81-89CM L,XL L,XL L,XL
185-196CM 84-91CM XL XL L,XL
ROAD / ADVENTURE / CITY
身 長 股 下 長 ROAD / ROVE SUTRA DEWS COCO
147-155CM 61-69CM 46 CM 46-48 CM 46-48 CM S
152-160CM 66-74CM 49 CM 48-49.5 CM 46-49 CM S,M
157-170CM 69-76CM 49-53 CM 49-53 CM 48-54 CM M,L
168-178CM 74-79CM 53-56 CM 51-56 CM 52-56 CM M,L
175-183CM 76-84CM 54-59 CM 54-59 CM 54-59 CM L,XL
180-188CM 81-89CM 59-61 CM 58-61 CM 54-59 CM L,XL
185-196CM 84-91CM 59-61 CM 58-61 CM 54-59 CM XL

FAT BIKE
