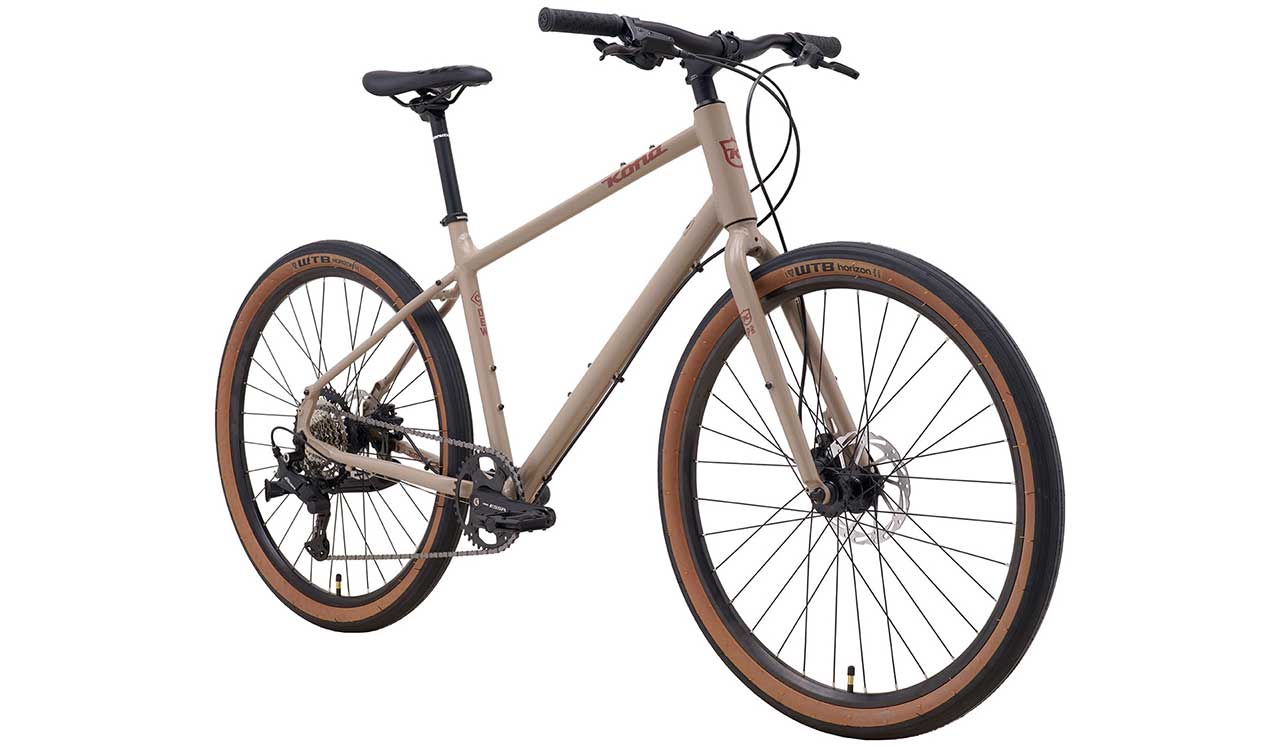

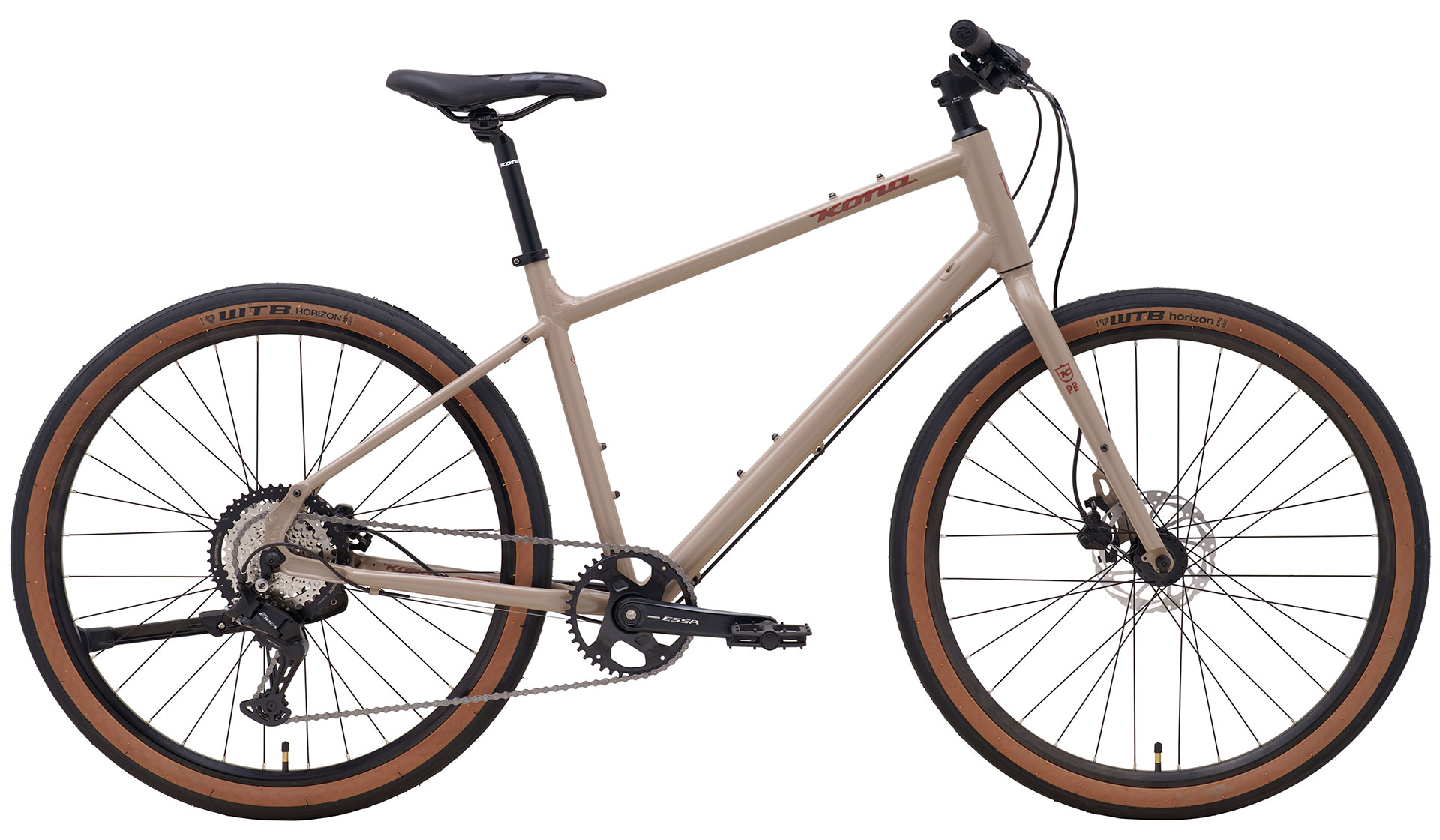

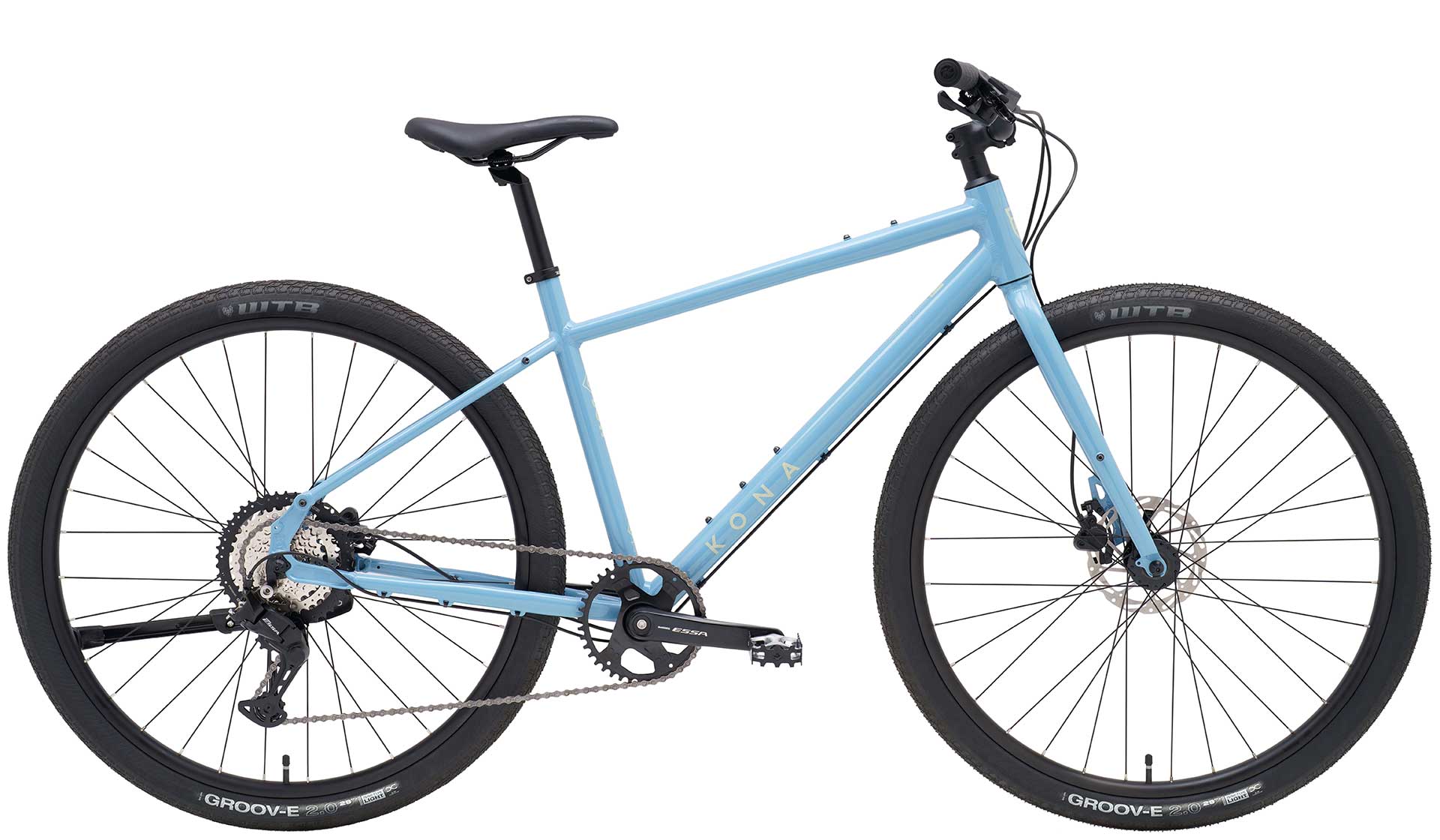

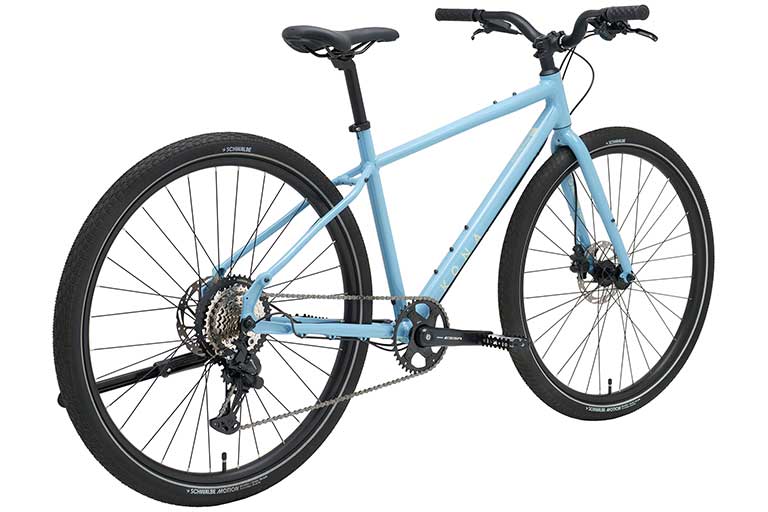

DEW

完成車価格 ¥63,000(税抜)
  • KONA 6061 ALUMINUM
  • INTERNAL HEADSET
  • 650b WHEELS
DEW DEW

The Dew is as classic to the Kona lineup as a fedora is to a Havana night. Comfort, simplicity, and efficiency are at the forefront of the Dew. Equipped with Tektro disc brakes, the Dew has exceptional stopping power, whether that’s while bombing down a hill, or perfecting your skids.

DEW IMG DEW IMG DEW IMG DEW IMG DEW IMG DEW IMG DEW IMG DEW IMG DEW IMG DEW IMG DEW IMG DEW IMG DEW IMG

SPECIFICATIONS

FRAME MATERIAL Kona 6061 Aluminum Butted
SIZES 46, 48, 52, 55
REAR SHOCK n/a
FORK Kona Project Two Disc
CRANKARMS Shimano Altus
CHAINRINGS 28/38/48t
B/B CH52
PEDALS Xerama Platform
CHAIN KMC Z8.1
FREEWHEEL Shimano Tourney 11-34t 8spd
CHAINGUIDE n/a
F/D Shimano Tourney
R/D Shimano Altus
SHIFTERS Shimano Acera
BRAKE CALIPERS Tektro M280
FRONT BRAKE ROTOR Textro 160mm
REAR BRAKE ROTOR Textro 160mm
BRAKE LEVERS Shimano Acera
HEADSET FSA TH874
HANDLEBAR Kona Aluminum Riser
STEM Kona Control
SEATPOST Kona Commuter 27.2mm
SEAT CLAMP Kona Clamp
GRIPS Kona Key Grip
SADDLE Kona Comfort
FRONT HUB Formula 100x9mm
REAR HUB Formula 135x10mm
SPOKES Stainless 15g fr /14g rr
RIMS Alex DP23
FRONT TIRE WTB Horizon Comp 650x47c
REAR TIRE WTB Horizon Comp 650x47c
PAINT COLOR Matt Forest Gray, Dark Mustard
EXTRAS Kona Bell

GEOMETRY

  SIZE 46 48 52 55
1 ST LENGTH 460 480 520 550
2 TT LENGTH 538 556 576 594
3 REACH 384 392 401 407
4 STACK 554 573 592 611
5 STANDOVER 710 730 760 786
6 HT ANGLE 70° 70° 70° 70°
7 HT LENGTH 120 140 160 180
8 ST ANGLE 74.5° 74° 73.5° 73°
9 CS LENGTH 450 450 450 450
10 BB DROP 70 70 70 70
11 BB HEIGHT 272 272 272 272
12 WHEELBASE 1058 1073 1088 1102
13 FRONT CENTER 618 632 648 661
14 FORK LENGTH 410 410 410 410
15 FORK OFFSET 50 50 50 50
ジオメトリ表
  1. 1ST LENGTH
  2. 2TT LENGTH
  3. 3REACH
  4. 4STACK
  5. 5STANDOVER
  6. 6HT ANGLE
  7. 7HT LENGTH
  8. 8ST ANGLE
  9. 9CS LENGTH
  10. 10BB DROP
  11. 11BB HEIGHT
  12. 12WHEELBASE
  13. 13FRONT CENTER
  14. 14FORK LENGTH
  15. 15FORK OFFSET

SIZING & FIT

MOUNTAIN / FAT BIKE
身 長 股 下 長 MTB / XC TRAIL / FAT ALL MOUNTAIN / ENDURO GRAVITY / DH
147-155CM 61-69CM XS XS -
152-160CM 66-74CM S S -
157-170CM 69-76CM S,M S,M M
168-178CM 74-79CM M M M
175-183CM 76-84CM M,L M,L M,L
180-188CM 81-89CM L,XL L,XL L,XL
185-196CM 84-91CM XL XL L,XL
ROAD / ADVENTURE / CITY
身 長 股 下 長 ROAD / ROVE SUTRA DEWS COCO
147-155CM 61-69CM 46 CM 46-48 CM 46-48 CM S
152-160CM 66-74CM 49 CM 48-49.5 CM 46-49 CM S,M
157-170CM 69-76CM 49-53 CM 49-53 CM 48-54 CM M,L
168-178CM 74-79CM 53-56 CM 51-56 CM 52-56 CM M,L
175-183CM 76-84CM 54-59 CM 54-59 CM 54-59 CM L,XL
180-188CM 81-89CM 59-61 CM 58-61 CM 54-59 CM L,XL
185-196CM 84-91CM 59-61 CM 58-61 CM 54-59 CM XL
