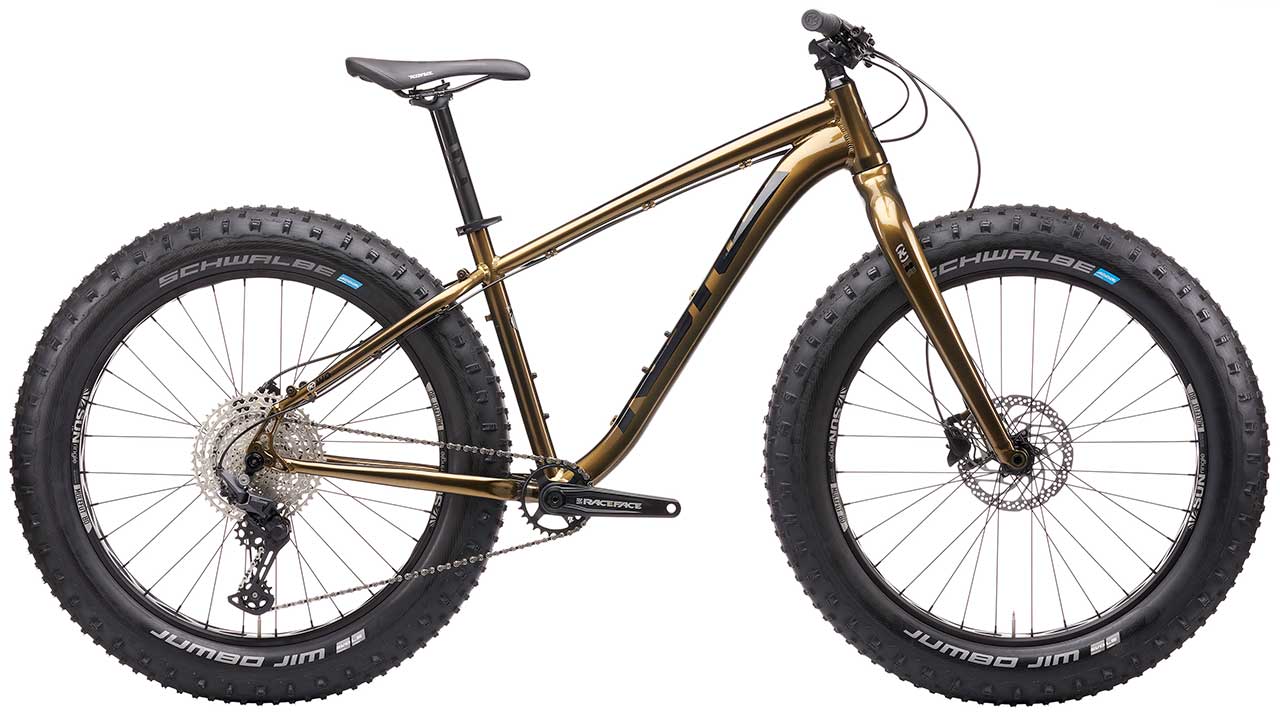

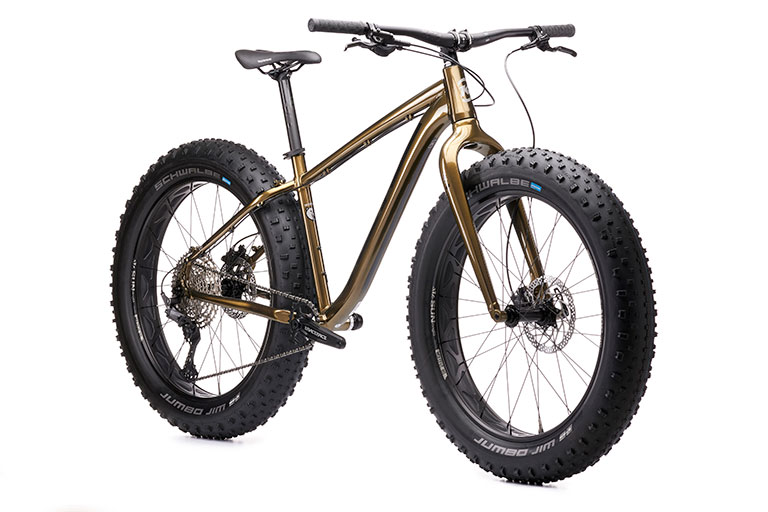

KonaのファットバイクといえばWo。シンプルで信頼性の高いデザインは、世界中のファットバイクファンの間で人気です。ワイドなギア比のShimano Deore 11速ドライブトレイン、Race Face Ride クランク、Schwalbe Jumbo Jim 4.8インチタイヤをチューブレスレディのSun MuleFut リムに装着し、どこでも行きたいところへ簡単に行くことができます。
「Woは最高のバリューを持った手頃な価格のファットバイクだ」
- Bicycling Mag
| SPECIFICATIONS | WO |
|---|---|
| PRICE | ¥165,000（税込） |

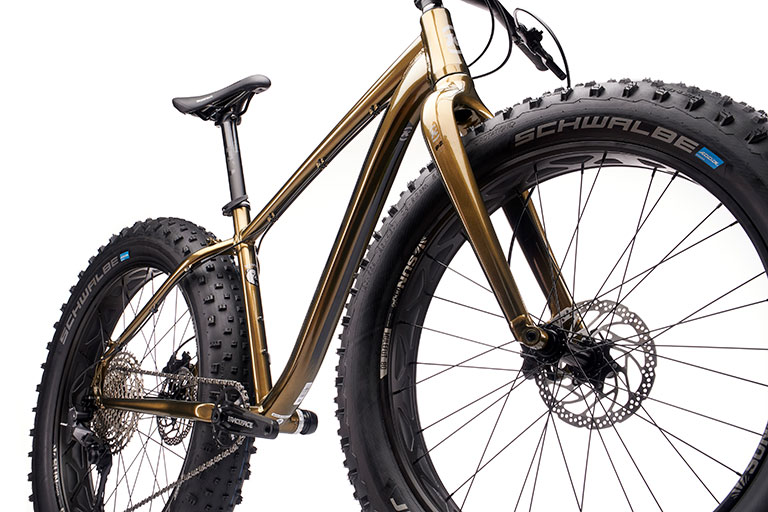

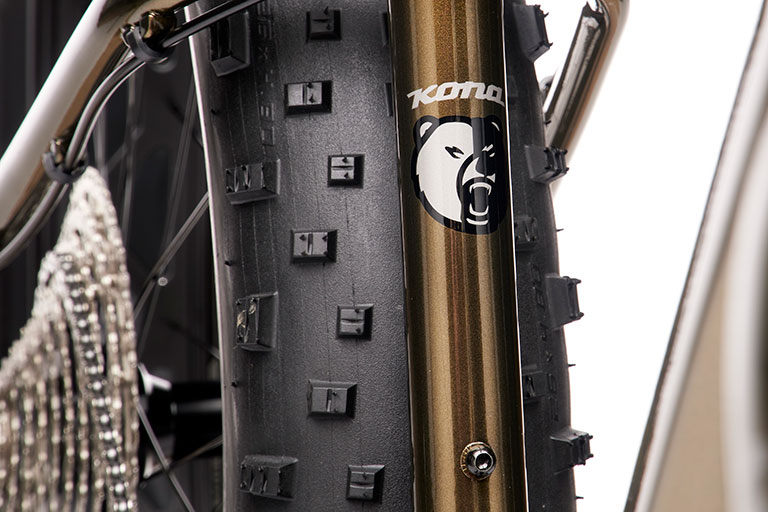

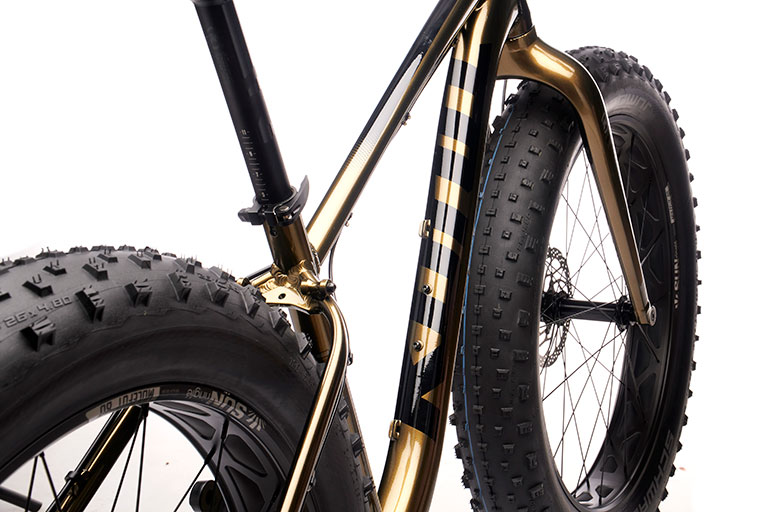

| FRAME MATERIAL | Kona Fat 6061 Aluminum Butted |
| SIZES | S, M, L, |
| REAR SHOCK | n/a |
| FORK | Kona Wo Fat Disc |

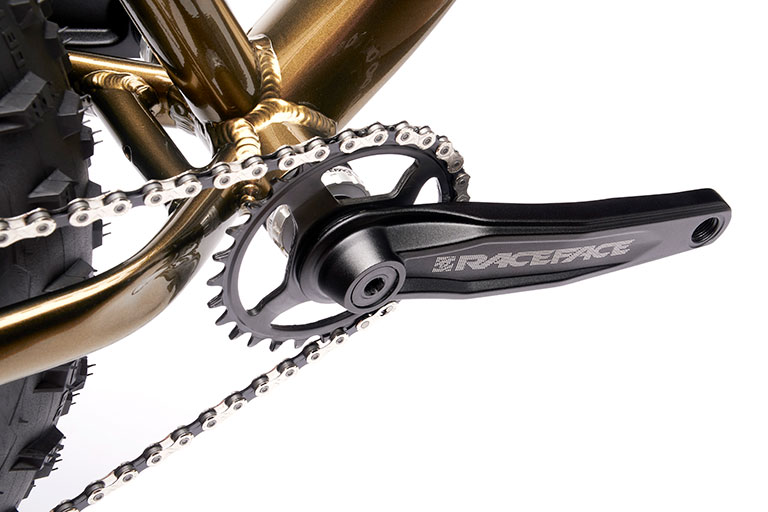

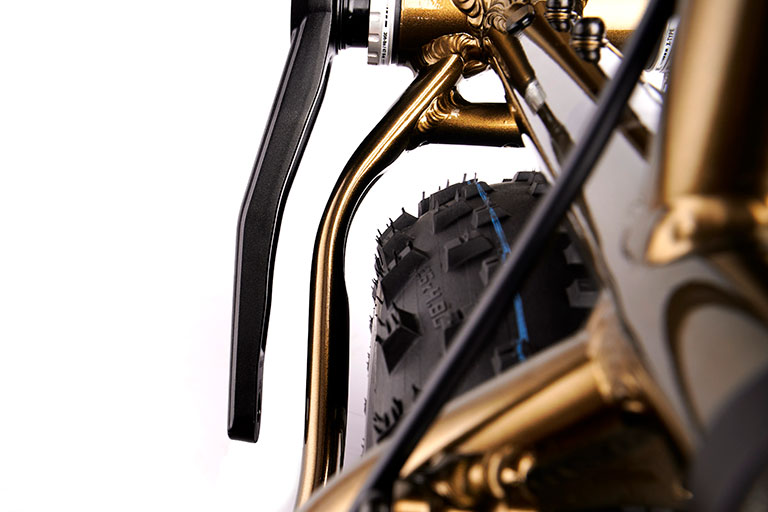

| CRANKARMS | Race Face Ride Fat |
| CHAINRINGS | 28t Wide/Narrow |
| B/B | Race Face 100mm |
| PEDALS | n/a |
| CHAIN | KMC X11 |
| FREEWHEEL | Shimano Deore 11-51t 11spd |
| CHAINGUIDE | n/a |
| F/D | n/a |

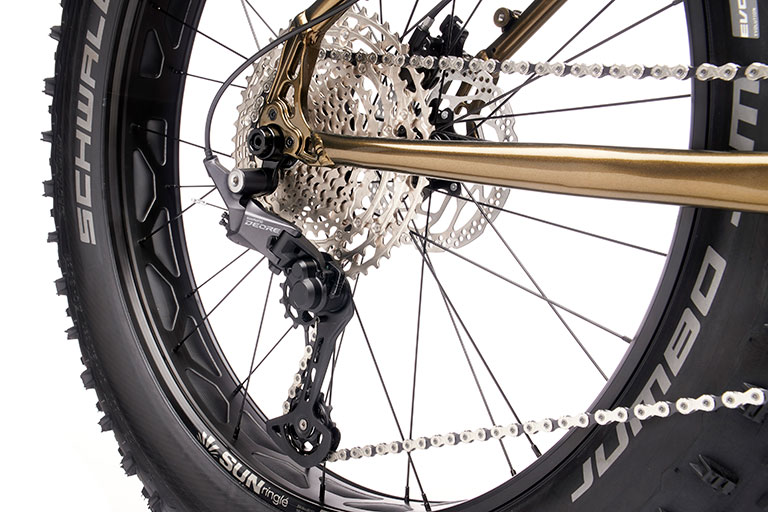

| R/D | Shimano Deore 11spd |

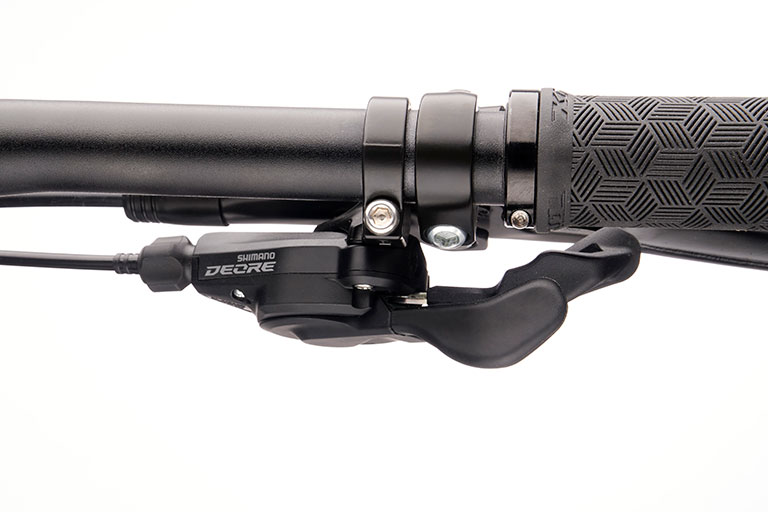

| SHIFTERS | Shimano Deore 11spd |

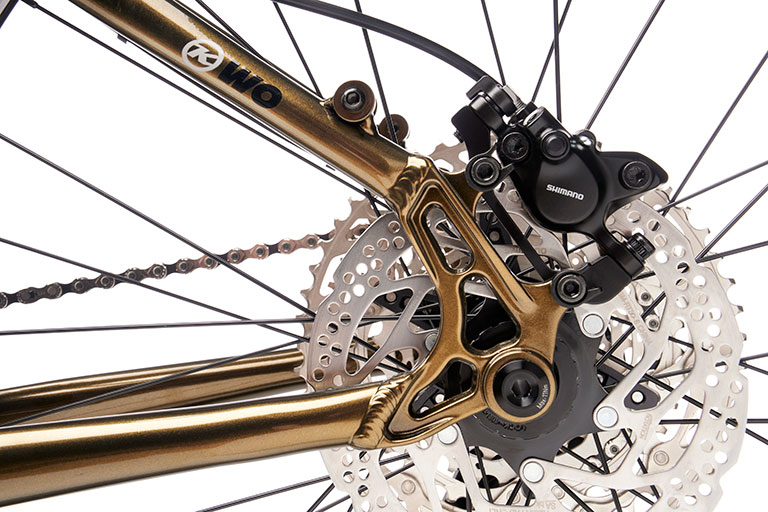

| BRAKE CALIPERS | Shimano MT201 Hydraulic |
| FRONT BRAKE ROTOR | Shimano RT30 180mm (centerlock) |
| REAR BRAKE ROTOR | Shimano RT30 160mm (centerlock) |

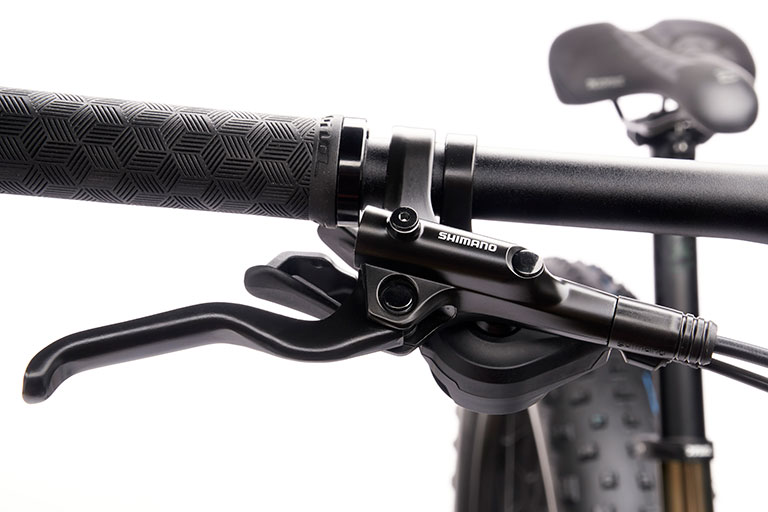

| BRAKE LEVERS | Shimano MT201Hydraulic |

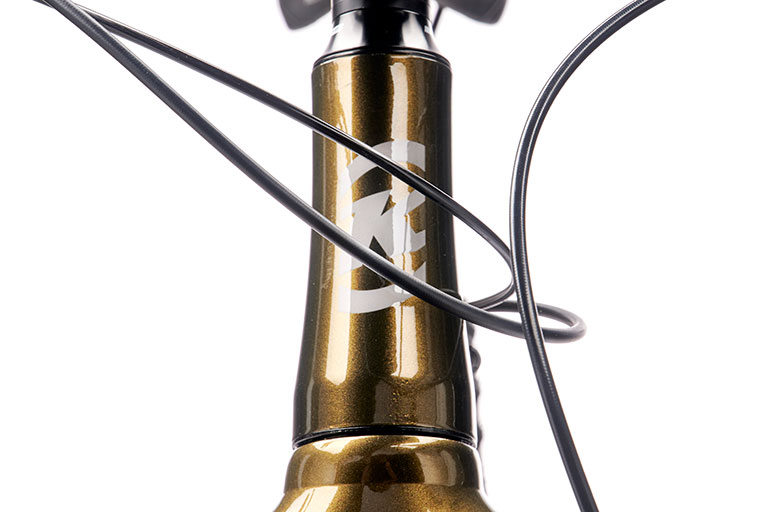

| HEADSET | FSA No.57B |

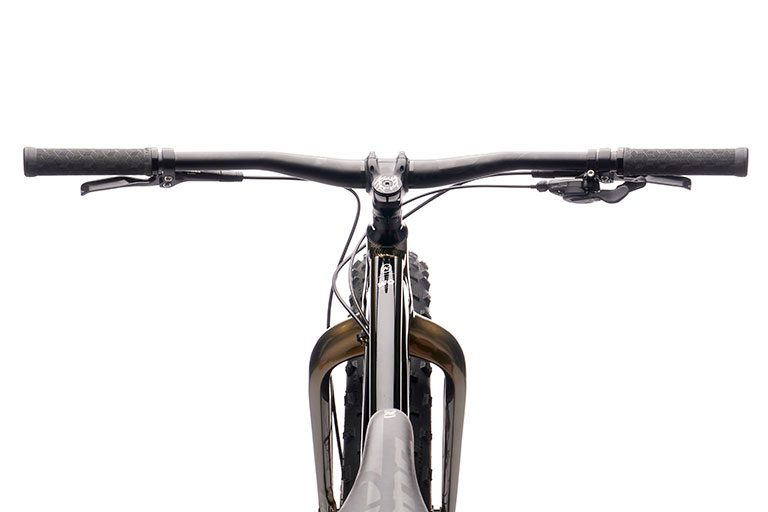

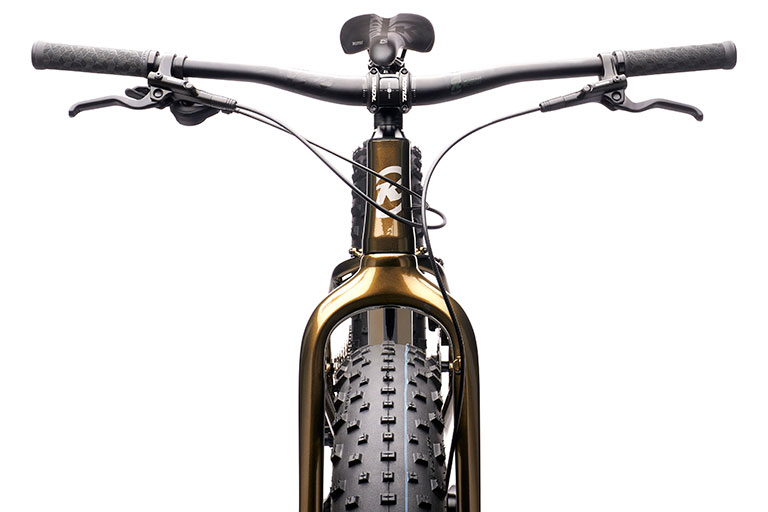

| HANDLEBAR | Kona XC/BC 35 |

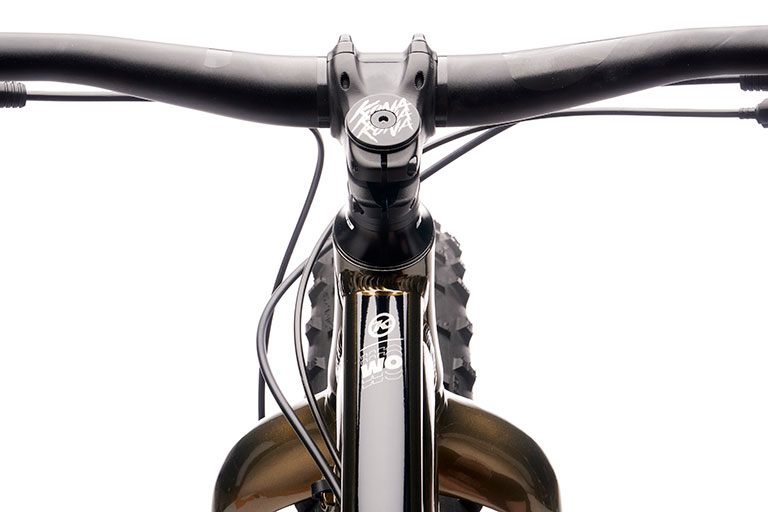

| STEM | Kona XC/BC 35 |

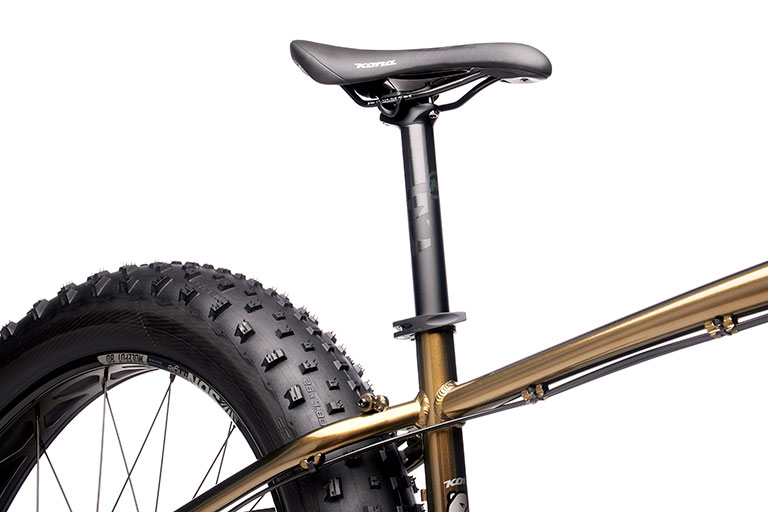

| SEATPOST | Kona XC/BC 31.6mm |
| SEAT CLAMP | Kona QR |
| GRIPS | Kona Key Grip |
| SADDLE | Kona Fat |
| FRONT HUB | KT 150x15mm |
| REAR HUB | KT 197x12mm |
| SPOKES | Stainless Black 14g |

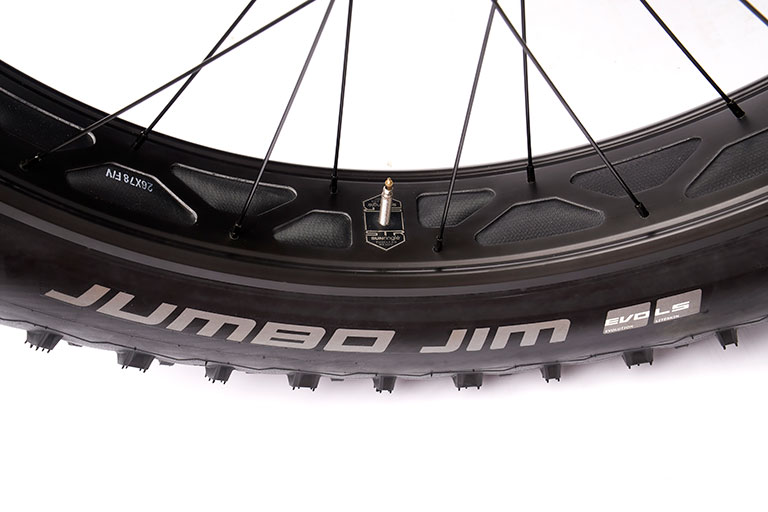

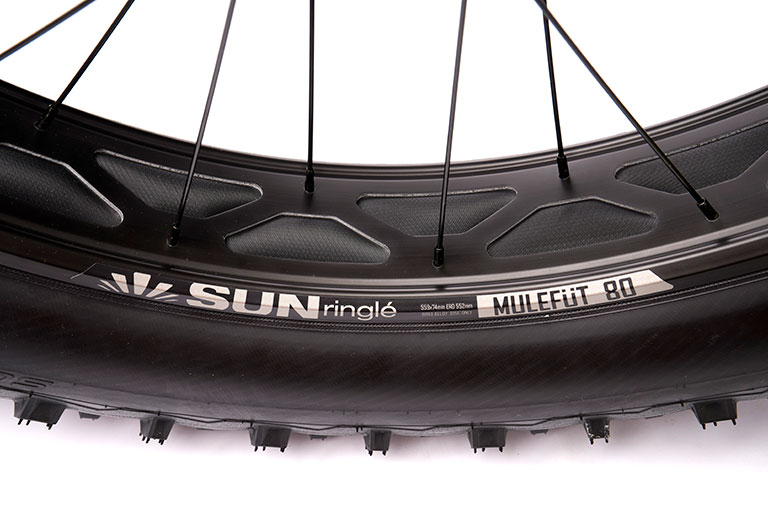

| RIMS | Sun Ringle Mulefut 80 Tubeless Ready |

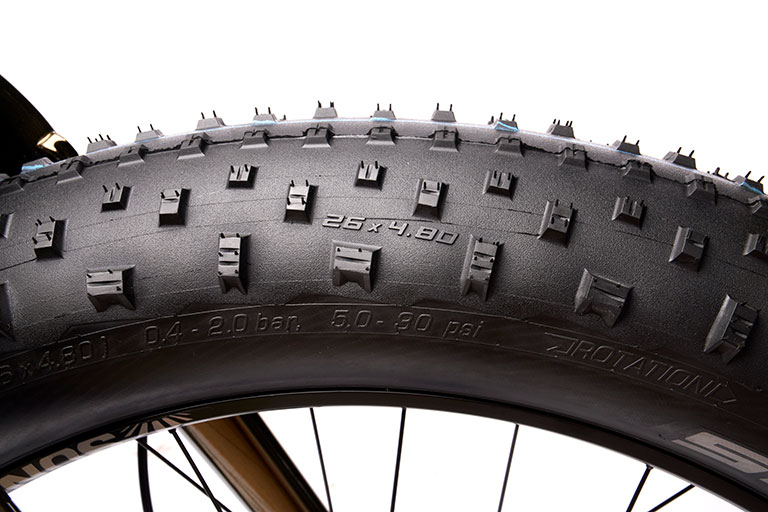

| FRONT TIRE | Schwalbe Jumbo Jim TR 26x4.8" |
| REAR TIRE | Schwalbe Jumbo Jim TR 26x4.8" |

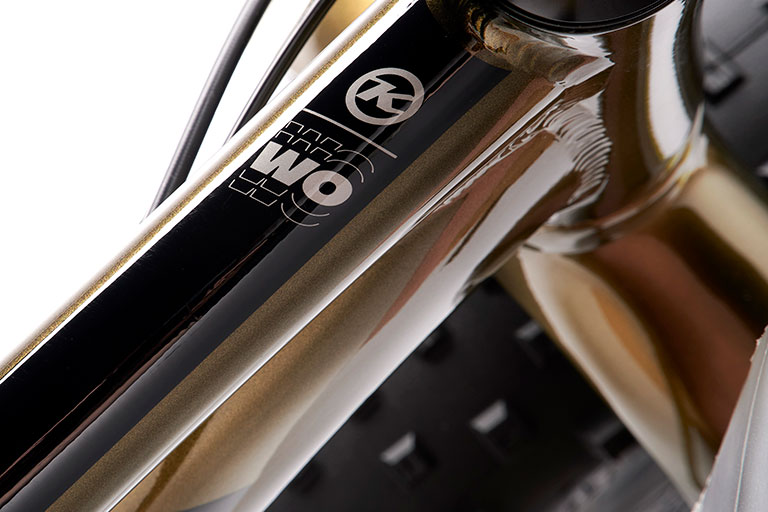

| PAINT COLOR | Gloss Metallic Champagne w/ Silver & Black Decals |
| SIZE | S | M | L | |
|---|---|---|---|---|
| 1 | ST LENGTH | 381 | 432 | 483 |
| 2 | TT LENGTH | 591 | 619 | 647 |
| 3 | REACH | 405 | 430 | 455 |
| 4 | STACK | 608 | 617 | 627 |
| 5 | STANDOVER | 739 | 768 | 792 |
| 6 | HT ANGLE | 69 | 69 | 69 |
| 7 | HT LENGTH | 120 | 130 | 140 |
| 8 | ST ANGLE | 73 | 73 | 73 |
| 9 | CS LENGTH | 455 | 455 | 455 |
| 10 | BB DROP | 60 | 60 | 60 |
| 11 | BB HEIGHT | 324 | 324 | 324 |
| 12 | WHEELBASE | 1125 | 1154 | 1182 |
| 13 | FRONT CENTER | 677 | 705 | 694 |
| 14 | FORK LENGTH | 485 | 485 | 485 |
| 15 | FORK OFFSET | 55 | 55 | 55 |
| 身 長 | 股 下 長 | MTB / XC TRAIL / FAT | ALL MOUNTAIN / ENDURO | GRAVITY / DH |
|---|---|---|---|---|
| 147-155CM | 61-69CM | XS | XS | - |
| 152-160CM | 66-74CM | S | S | - |
| 157-170CM | 69-76CM | S,M | S,M | M |
| 168-178CM | 74-79CM | M | M | M |
| 175-183CM | 76-84CM | M,L | M,L | M,L |
| 180-188CM | 81-89CM | L,XL | L,XL | L,XL |
| 185-196CM | 84-91CM | XL | XL | L,XL |
| 身 長 | 股 下 長 | ROAD / ROVE | SUTRA | DEWS | COCO |
|---|---|---|---|---|---|
| 147-155CM | 61-69CM | 46 CM | 46-48 CM | 46-48 CM | S |
| 152-160CM | 66-74CM | 49 CM | 48-49.5 CM | 46-49 CM | S,M |
| 157-170CM | 69-76CM | 49-53 CM | 49-53 CM | 48-54 CM | M,L |
| 168-178CM | 74-79CM | 53-56 CM | 51-56 CM | 52-56 CM | M,L |
| 175-183CM | 76-84CM | 54-59 CM | 54-59 CM | 54-59 CM | L,XL |
| 180-188CM | 81-89CM | 59-61 CM | 58-61 CM | 54-59 CM | L,XL |
| 185-196CM | 84-91CM | 59-61 CM | 58-61 CM | 54-59 CM | XL |
