LANA'I

完成車価格 ¥68,000(税抜)
  • KONA 6061 ALUMINUM
  • INTERNAL HEADSET
  • TAPERED HEAD TUBE
  • 26" WHEELS
  • 27.5" WHEELS
LANA'I LANA'I

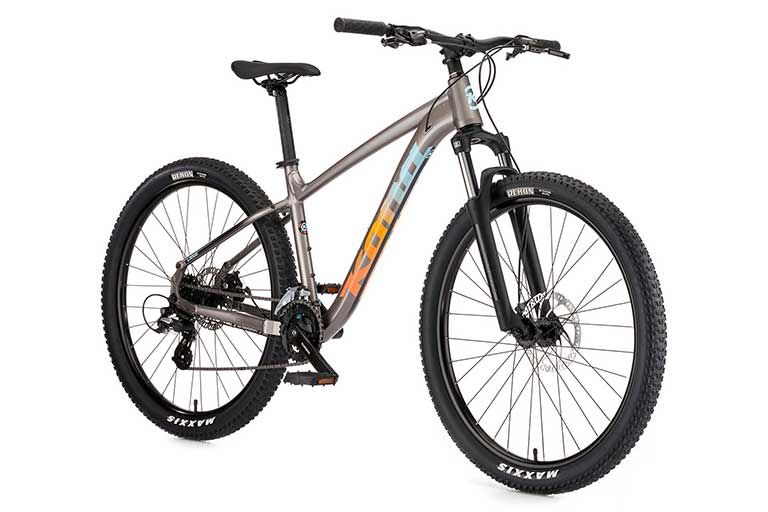

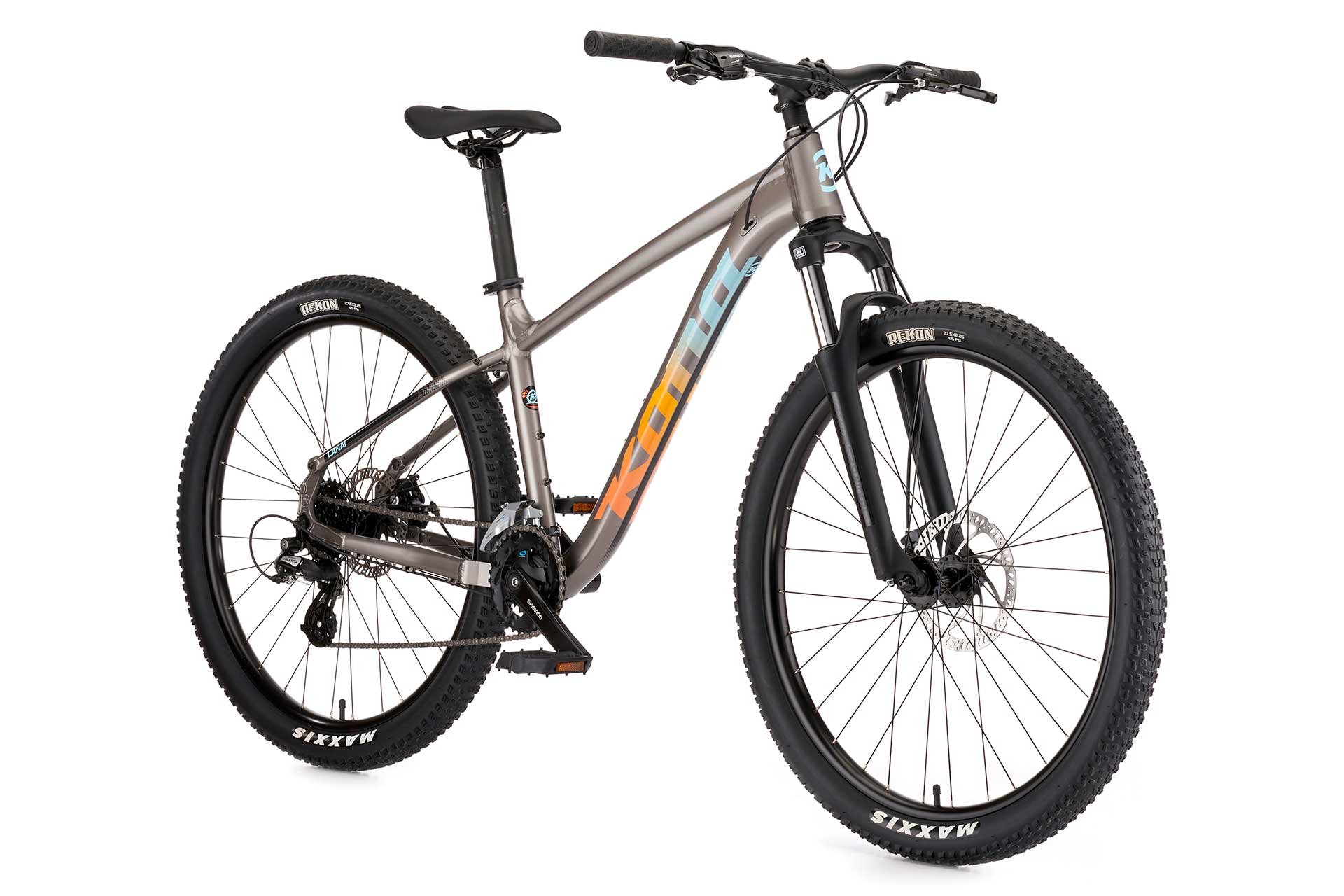

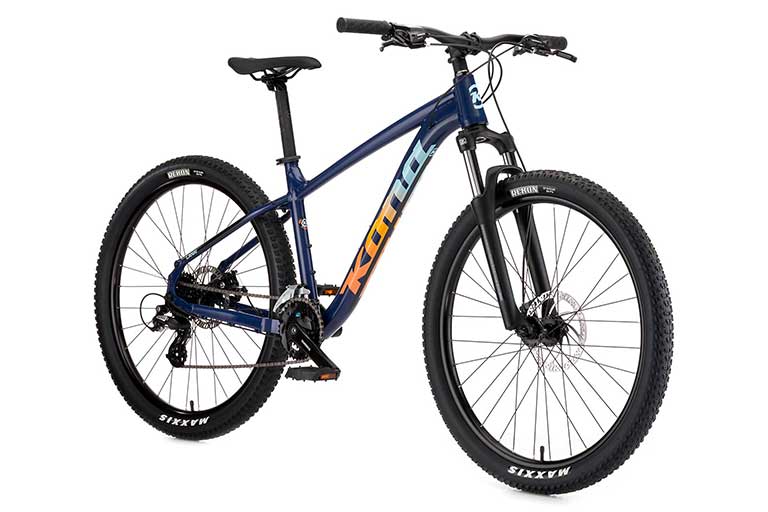

The Lana’i could be considered the gateway mountain bike. Offered in size XS with 26” wheels or S-XL with 27.5” wheels, there’s a perfect size for everyone. With a Shimano drivetrain, Tektro disc brakes, and a 100mm travel fork the Lana’i is the perfect way to dip your toes in the dirt.

LANA'I IMG LANA'I IMG LANA'I IMG LANA'I IMG LANA'I IMG LANA'I IMG LANA'I IMG LANA'I IMG LANA'I IMG LANA'I IMG LANA'I IMG LANA'I IMG LANA'I IMG

SPECIFICATIONS

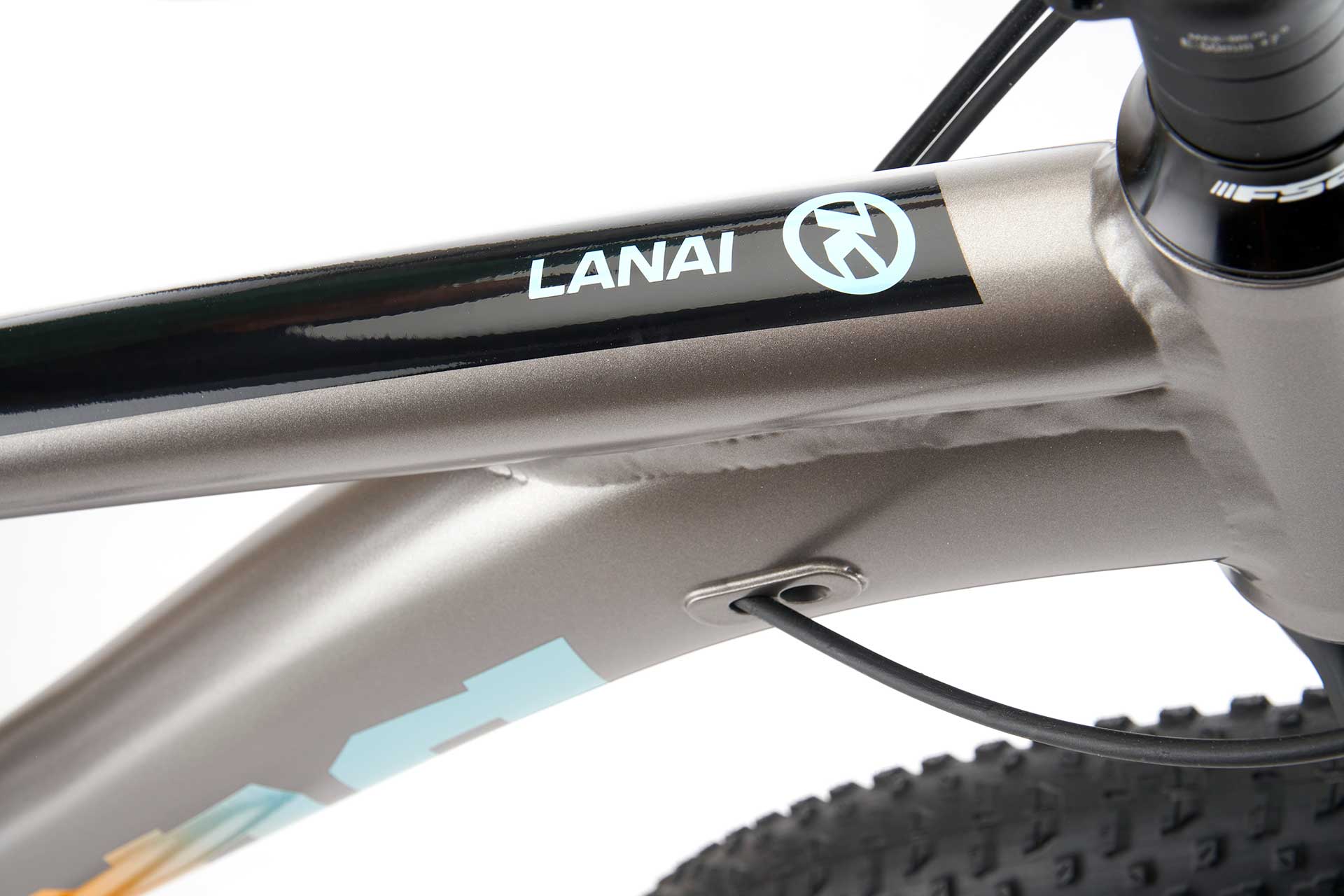

FRAME MATERIAL Kona 6061 Aluminum Butted
SIZES XS (26"), S, M, L
REAR SHOCK n/a

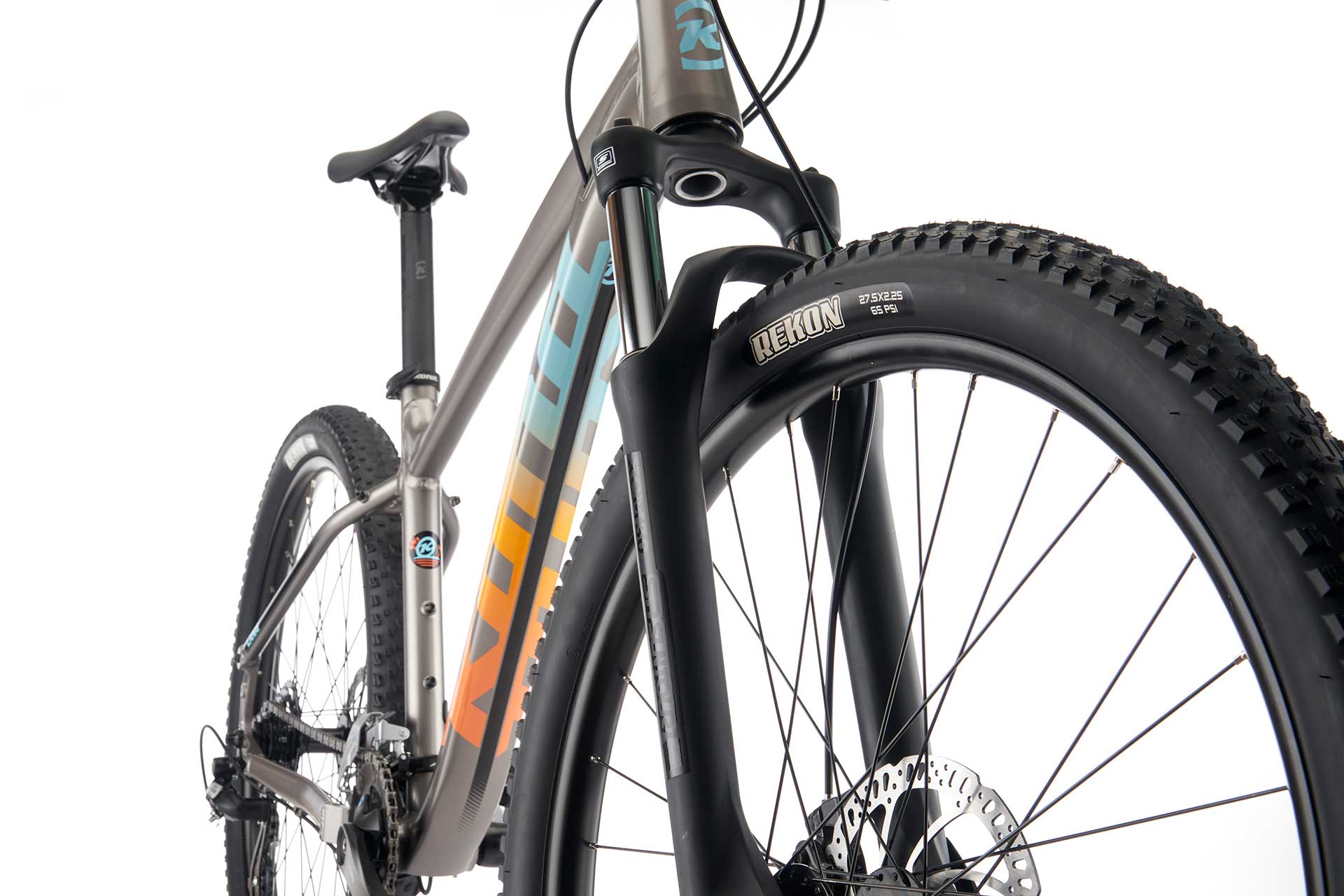

FORK Suntour XCT30 DS Coil Spring 100mm

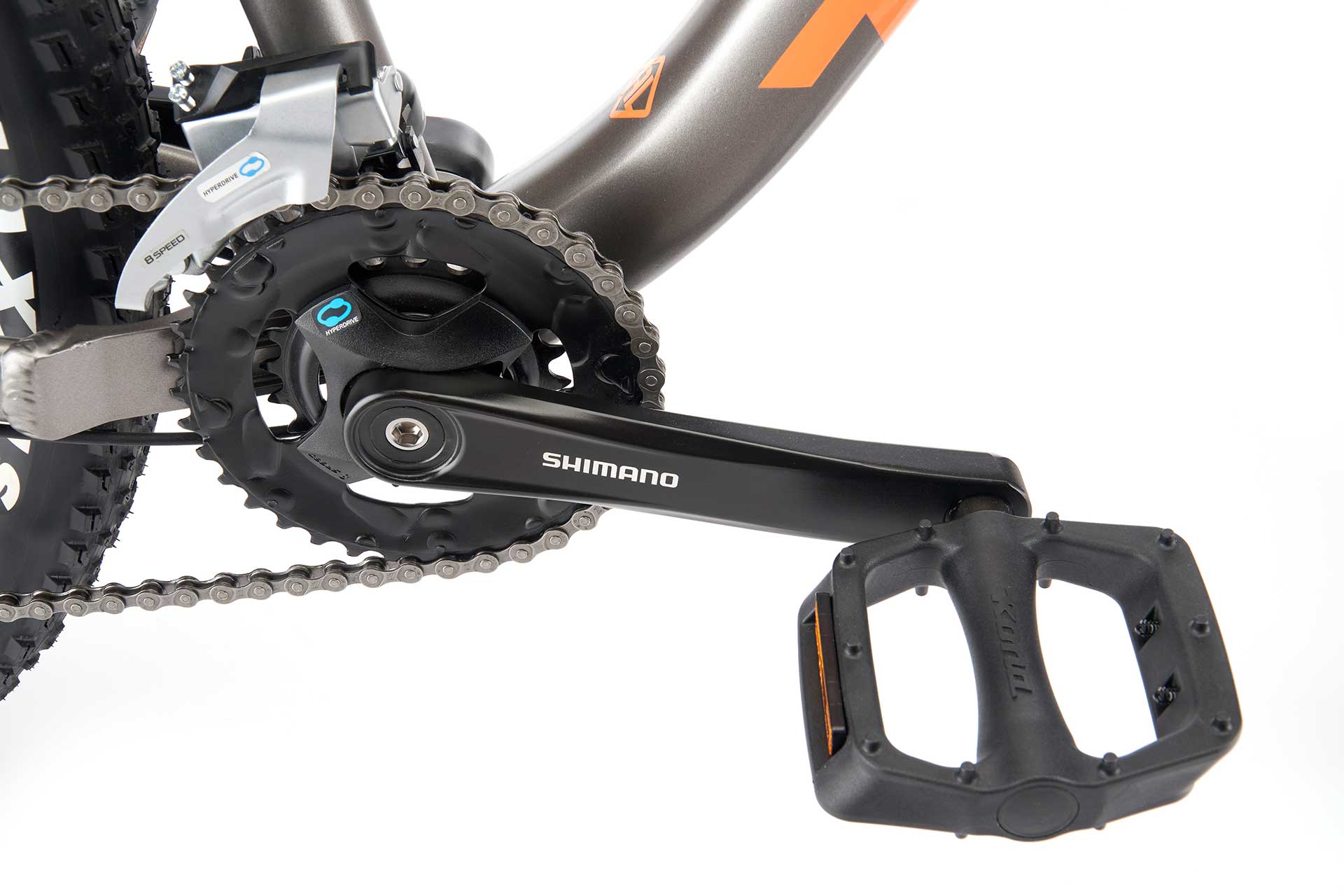

CRANKARMS Suntour XCE
CHAINRINGS 24/34/42t
B/B CH52
PEDALS Kona JS2
CHAIN KMC Z7
FREEWHEEL Shimano HG200 12-32t 8spd
CHAINGUIDE n/a

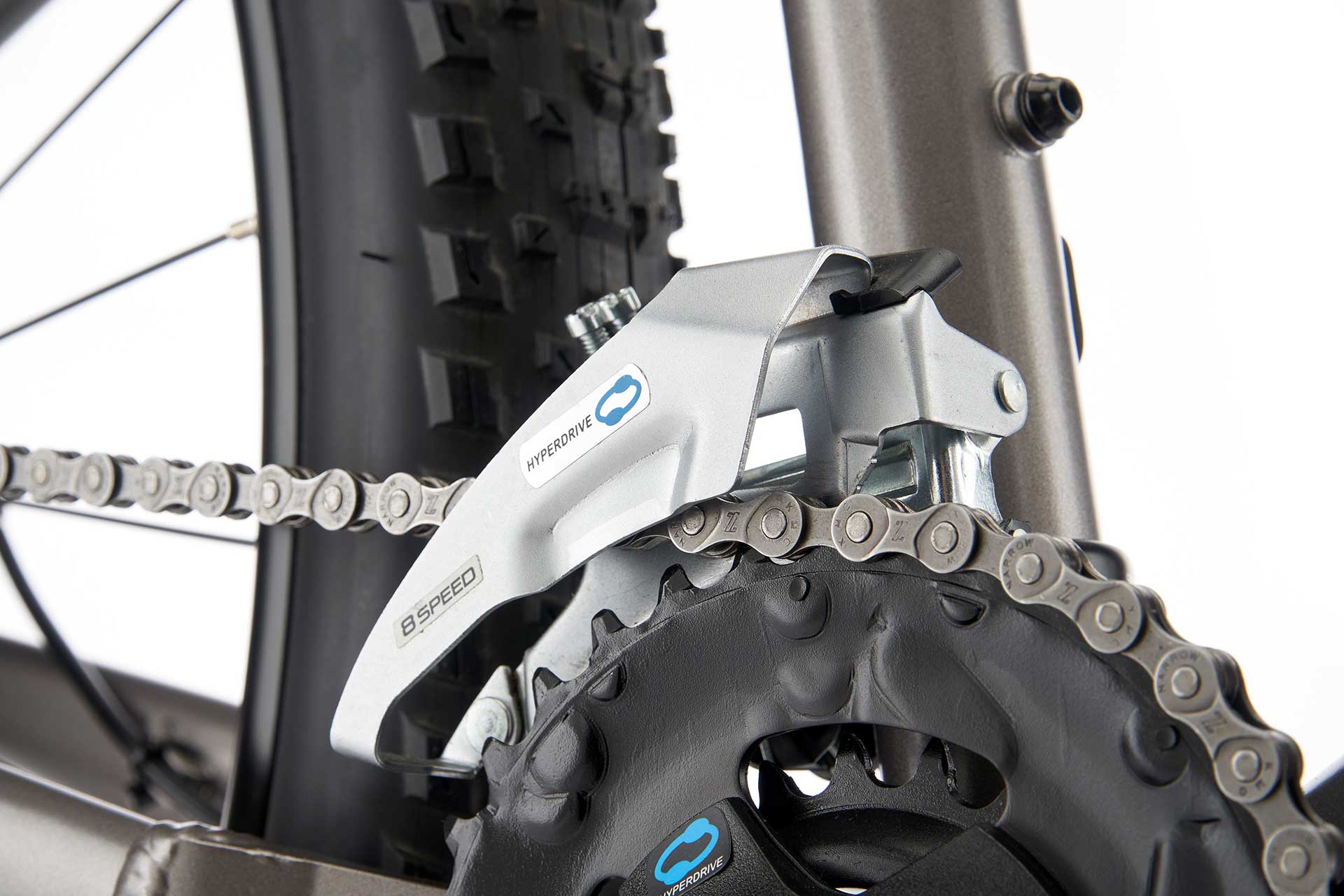

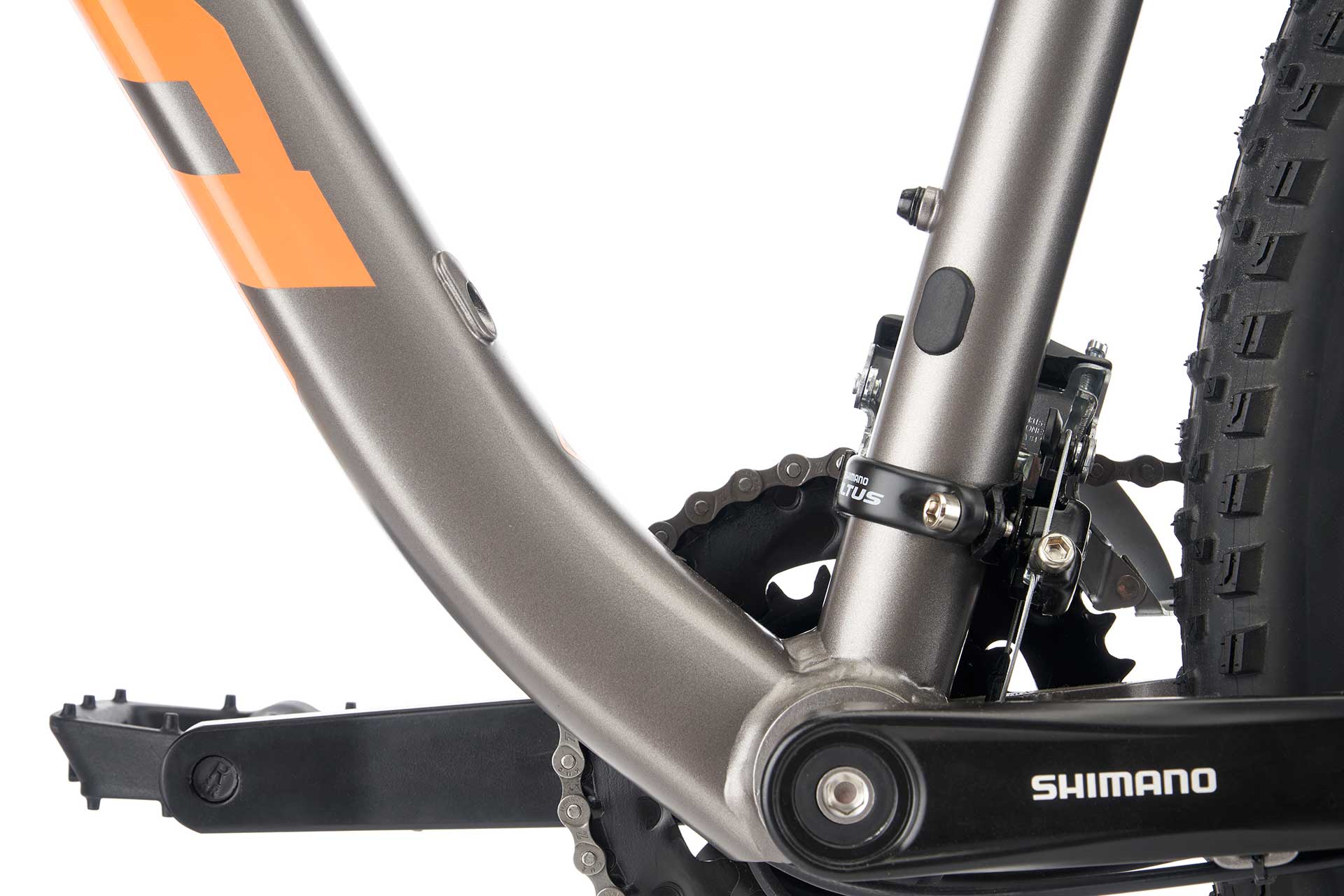

F/D Shimano Altus

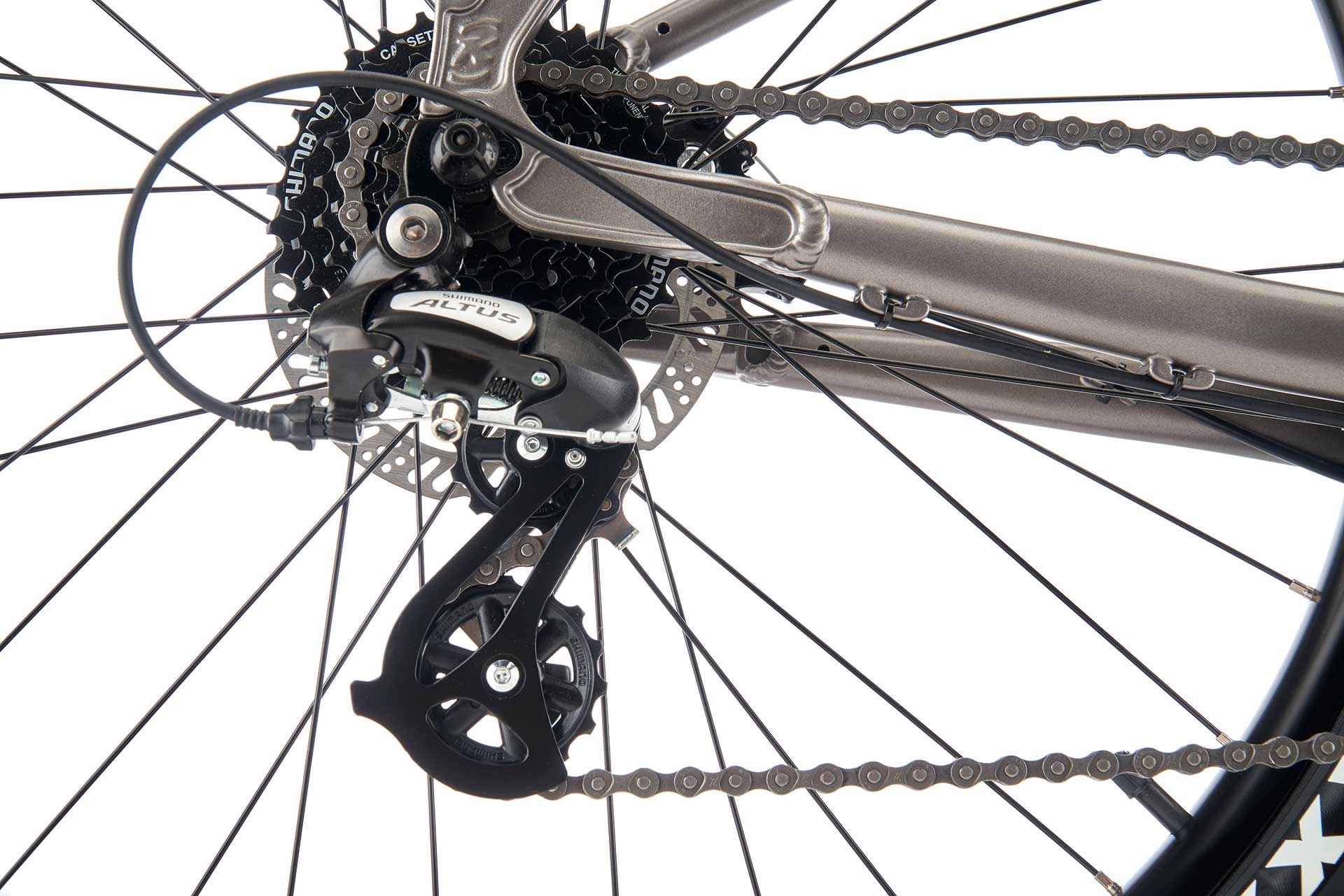

R/D Shimano Altus

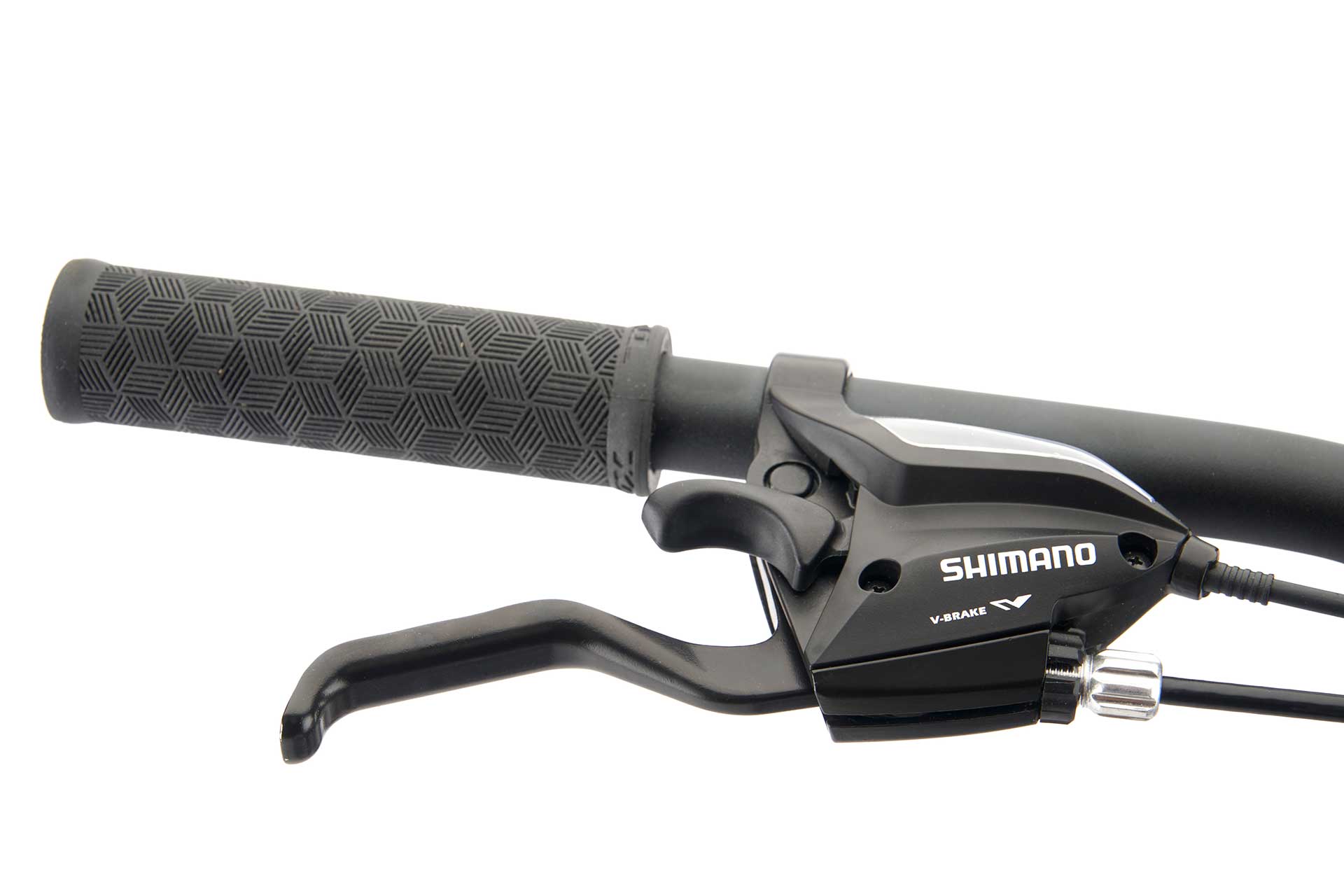

SHIFTERS Shimano EZ Fire Integrated

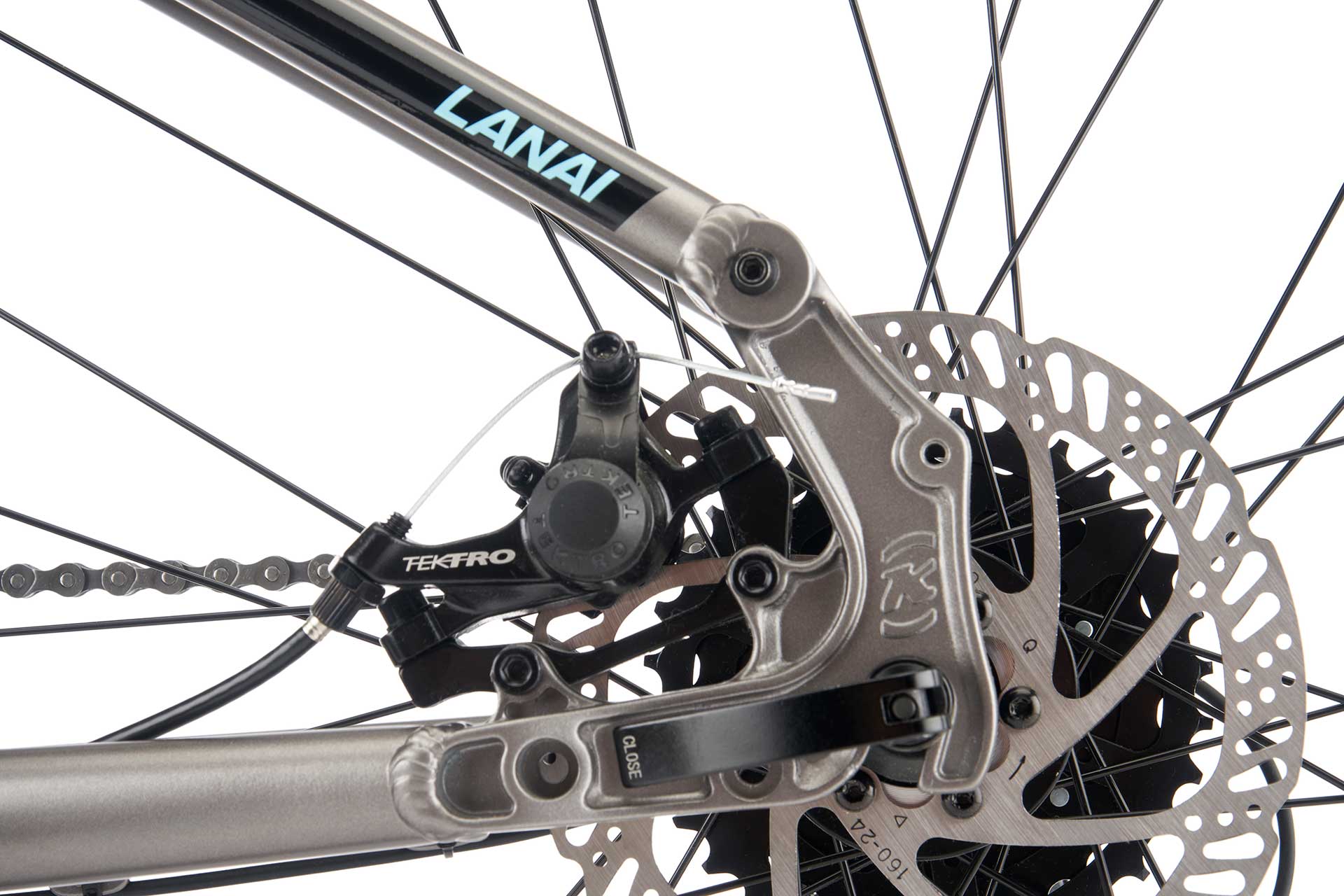

BRAKE CALIPERS Tektro Aries
FRONT BRAKE ROTOR Tektro Aries 180mm
REAR BRAKE ROTOR Tektro Aries 160mm
BRAKE LEVERS Shimano EZ Fire Integrated

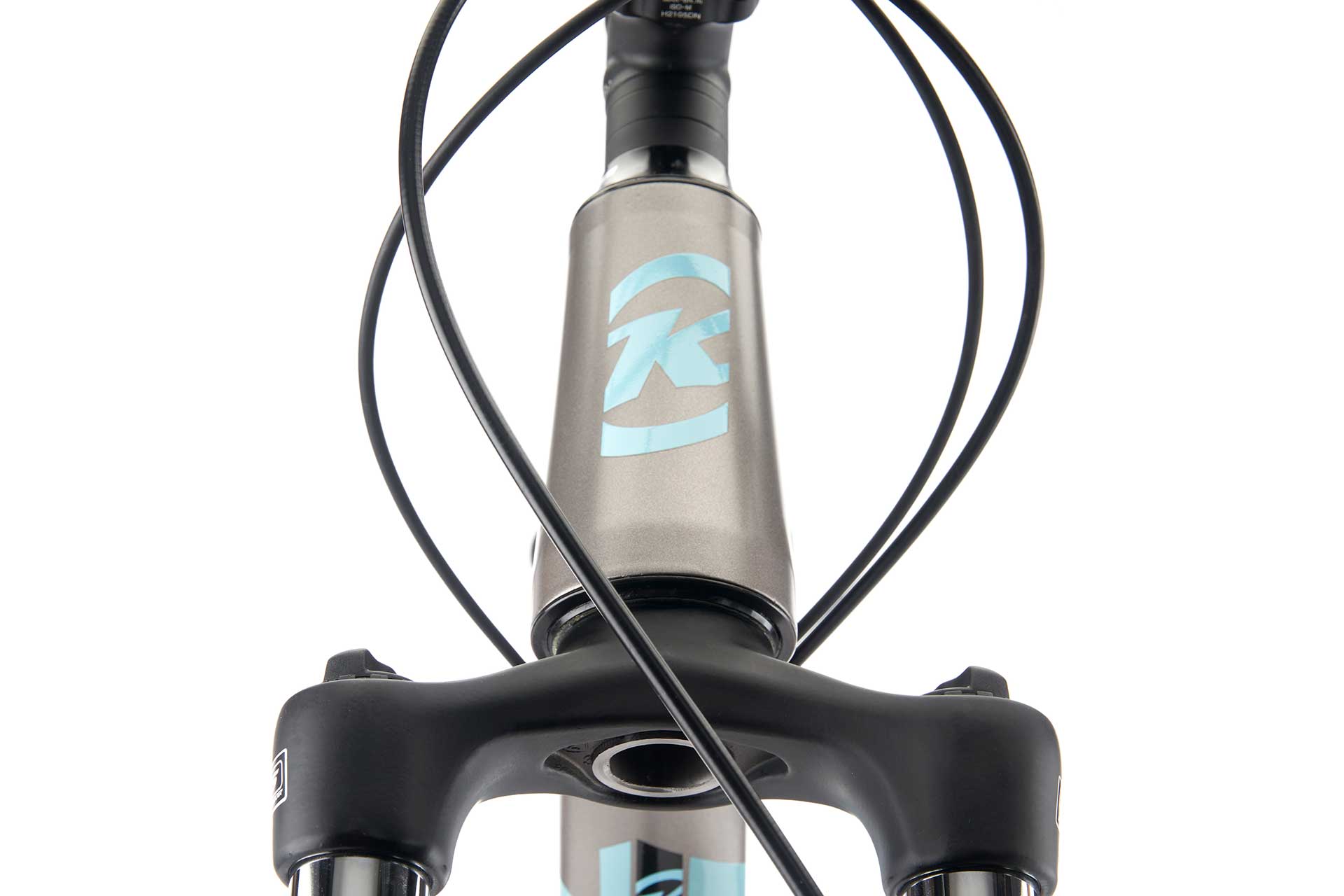

HEADSET FSA No.57B

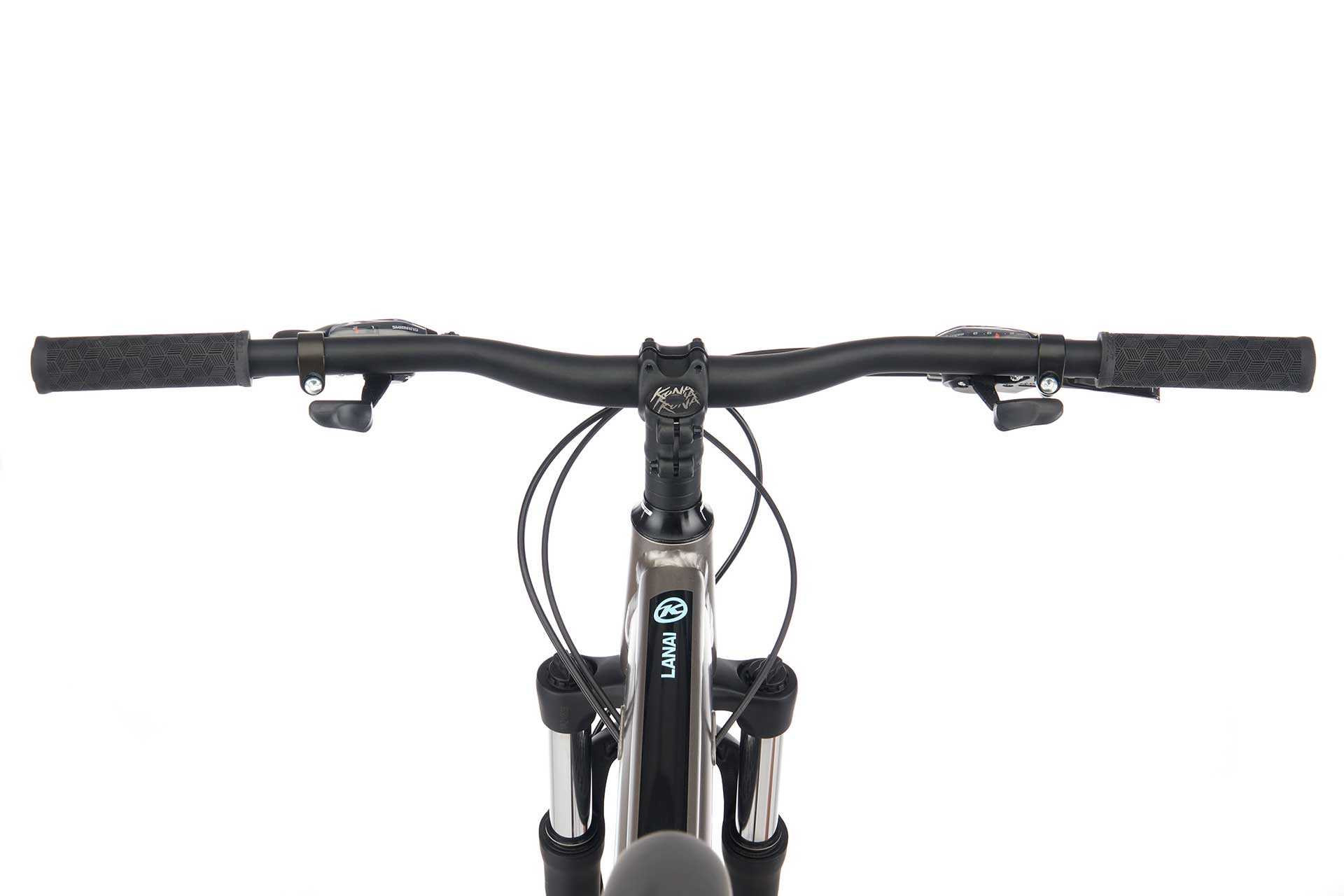

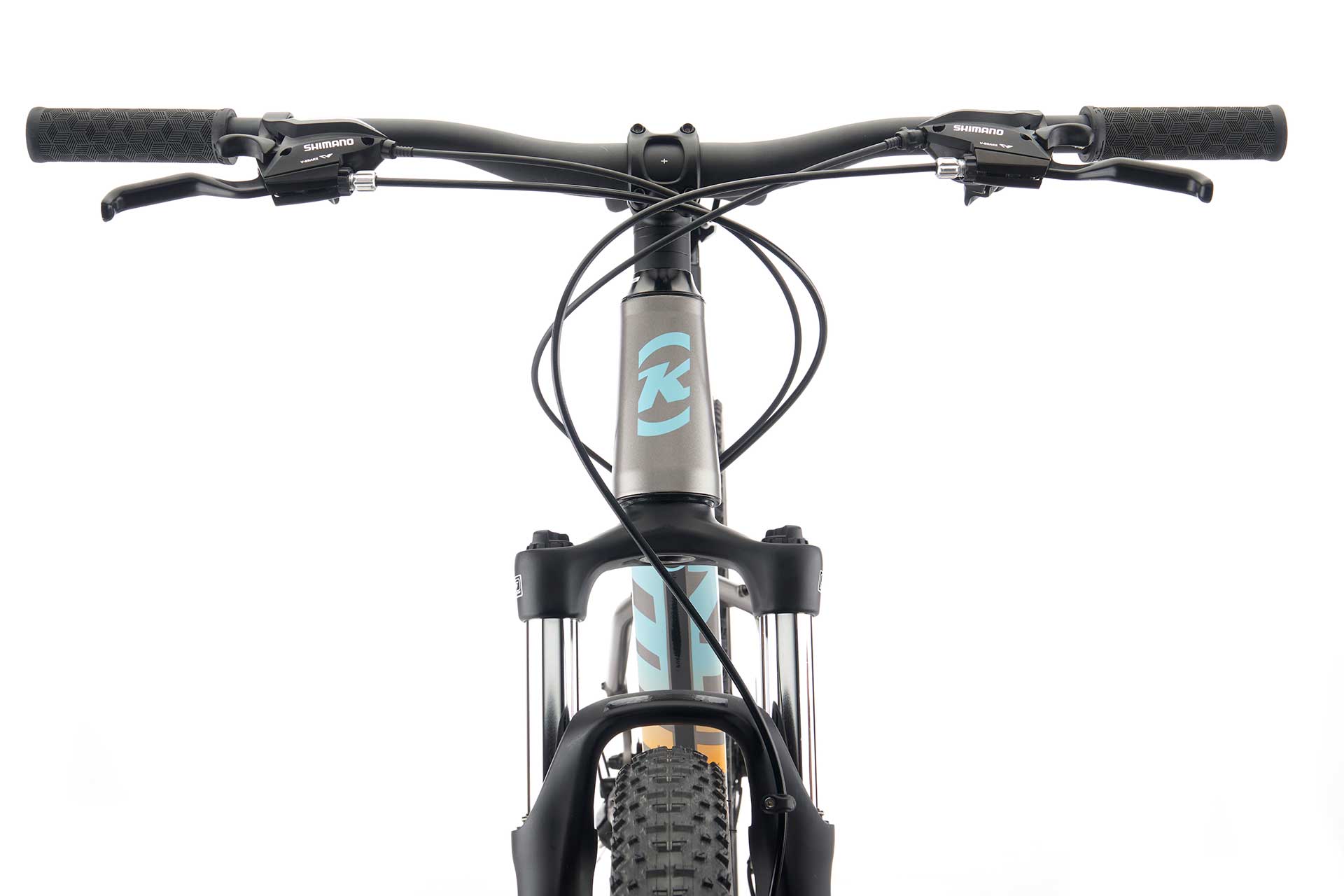

HANDLEBAR Kona Aluminum Riser
STEM Kona Control
SEATPOST Kona Thumb w/Offset 31.6mm
SEAT CLAMP Kona QR
GRIPS Kona Key Grip Slip on
SADDLE Kona XC
FRONT HUB Formula 100x9mm
REAR HUB Formula 135x10mm
SPOKES Stainless Black 14g
RIMS Double Wall alloy
FRONT TIRE WTB Trail Boss 27.5/26x2.25"
REAR TIRE WTB Trail Boss 27.5/26x2.25"
PAINT COLOR Gloss Dark Cyan

GEOMETRY

  SIZE XS S M L
1 ST LENGTH 331 370 420 470
2 TT LENGTH 555 570 599 626
3 REACH 395 400 425 449
4 STACK 559 593 607 616
5 STANDOVER 677 716 723 729
6 HT ANGLE 68° 68.5° 68.5° 68.5°
7 HT LENGTH 100 100 115 125
8 ST ANGLE 74° 74° 74° 74°
9 CS LENGTH 425 435 435 435
10 BB DROP 30 50 50 50
11 BB HEIGHT 303 303 303 303
12 WHEELBASE 1075 1090 1121 1149
13 FRONT CENTER 652 661 691 719
14 FORK LENGTH 483 497 497 497
15 FORK OFFSET 39 42 42 42
ジオメトリ表
  1. 1ST LENGTH
  2. 2TT LENGTH
  3. 3REACH
  4. 4STACK
  5. 5STANDOVER
  6. 6HT ANGLE
  7. 7HT LENGTH
  8. 8ST ANGLE
  9. 9CS LENGTH
  10. 10BB DROP
  11. 11BB HEIGHT
  12. 12WHEELBASE
  13. 13FRONT CENTER
  14. 14FORK LENGTH
  15. 15FORK OFFSET

SIZING & FIT

MOUNTAIN / FAT BIKE
身 長 股 下 長 MTB / XC TRAIL / FAT ALL MOUNTAIN / ENDURO GRAVITY / DH
147-155CM 61-69CM XS XS -
152-160CM 66-74CM S S -
157-170CM 69-76CM S,M S,M M
168-178CM 74-79CM M M M
175-183CM 76-84CM M,L M,L M,L
180-188CM 81-89CM L,XL L,XL L,XL
185-196CM 84-91CM XL XL L,XL
ROAD / ADVENTURE / CITY
身 長 股 下 長 ROAD / ROVE SUTRA DEWS COCO
147-155CM 61-69CM 46 CM 46-48 CM 46-48 CM S
152-160CM 66-74CM 49 CM 48-49.5 CM 46-49 CM S,M
157-170CM 69-76CM 49-53 CM 49-53 CM 48-54 CM M,L
168-178CM 74-79CM 53-56 CM 51-56 CM 52-56 CM M,L
175-183CM 76-84CM 54-59 CM 54-59 CM 54-59 CM L,XL
180-188CM 81-89CM 59-61 CM 58-61 CM 54-59 CM L,XL
185-196CM 84-91CM 59-61 CM 58-61 CM 54-59 CM XL
